Infinity Black Casing Tri-Colour LED Flood Light With PIR Motion Sensor
PIR floodlights are activated by movement, emitting light only when required and giving an additional level of security to residential and commercial premises.
This model can be used with sensor or without as a classic floodlight. There are three colours built-in the floodlight, which enables you to change colours arbitrarily. Colour setting can be done with or without PIR sensor attached.
A. Installed without switch: to set the colour, unit will need to be switched off and back on from the mains within 3 seconds.
B. With switch: to set the colour on the light, simply follow instructions below:
- Default when first turned on would be Day White (6000K).
- Turn off unit and switch unit back on within 3 seconds to give Warm White (3000K).
- Turn off unit and switch unit back on again within 3 seconds to give Neutral White (4000K).
- The Time the light is on can be set between approximately 7 seconds (±3sec) and 7minutes(±2min). Any time movement is sensed the time delay is reset.
- The Sensitivity can be set to detect movement (8m±2m) within a 120° angle.
- The Lux level sets the daylight threshold for the light to work and can be set between dark and daylight (<10-2000lux).
The Time, Sensitivity and the Lux level are adjusted with the dials on the PIR sensor.
- Turn the TIME dial anticlockwise to decrease the hold time (7 seconds-7 minutes).
- Turn the SENS dial anticlockwise to decrease the detection range (8m±2m).
- Turn the LUX dial anticlockwise to restrict activation to lower light conditions (<10-2000lux).
Note: When first switched on the light will come on for approx. 20 seconds before entering sensor mode.
We would advise, before permanently installing the light, is to turn the unit on and pre-select the desired colour output. Especially, if you have multiple units on a single switch, in an event that one unit may have a different sequence preset.
For example, if you have 3 units installed onto a single switch, if colours on each are not pre-selected, they may differ from one another, you would not be able to synchronise the 3 units as they all have memory function.
- Brand: G.W.S LED
- Material: Aluminium & Anti-Glare Tempered Glass
- Beam Angle: 120 Degrees
- Wire Length: Approx.100cm
- Input Voltage: AC220-240V
- Colour Temperature: 3000K/4000K/6000K
- IP Rating: IP65
- Warranty: 3 Years
- Lifespan: 30,000 Hours
- Certifications: CE & RoHS

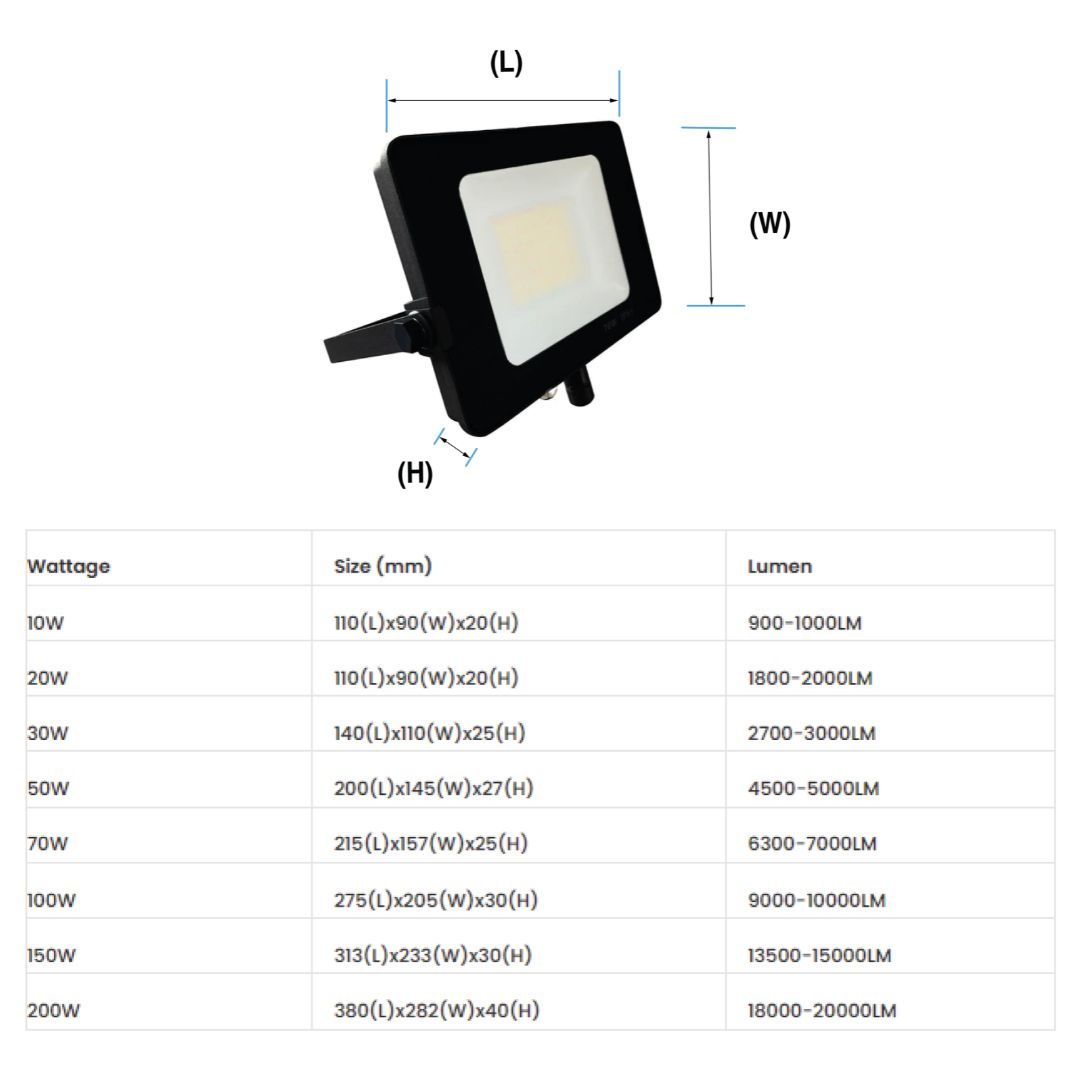

Wattage and size options
