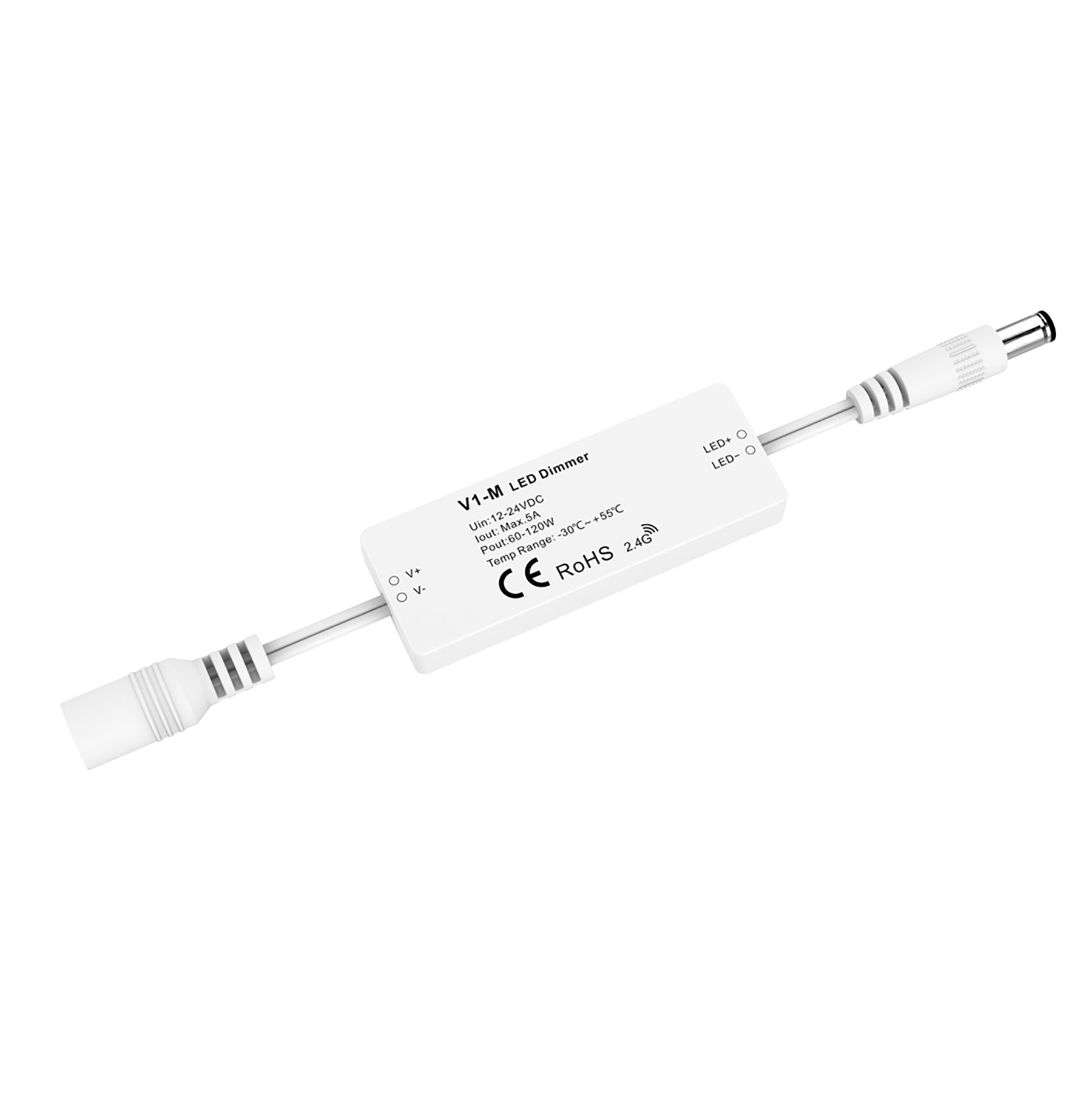

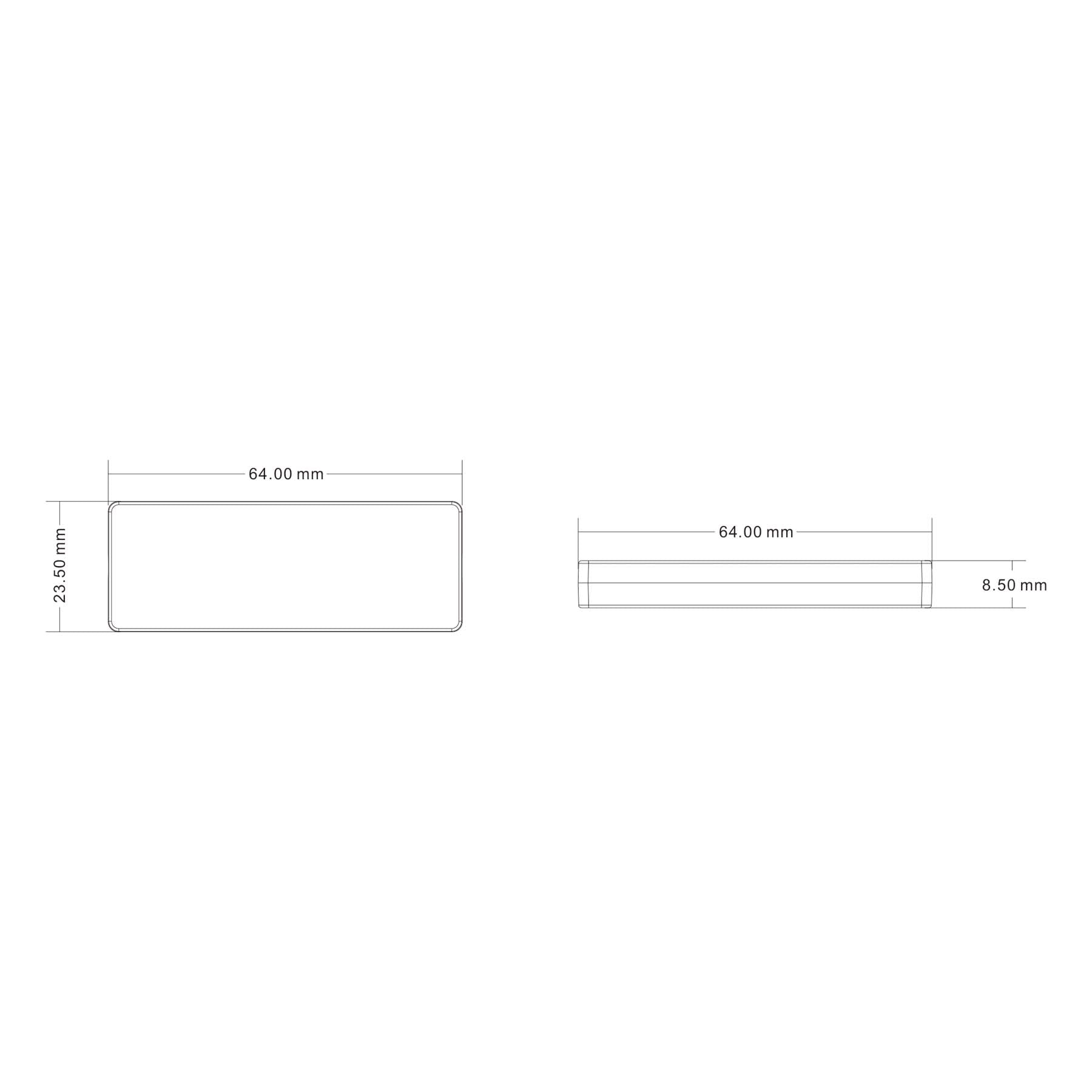

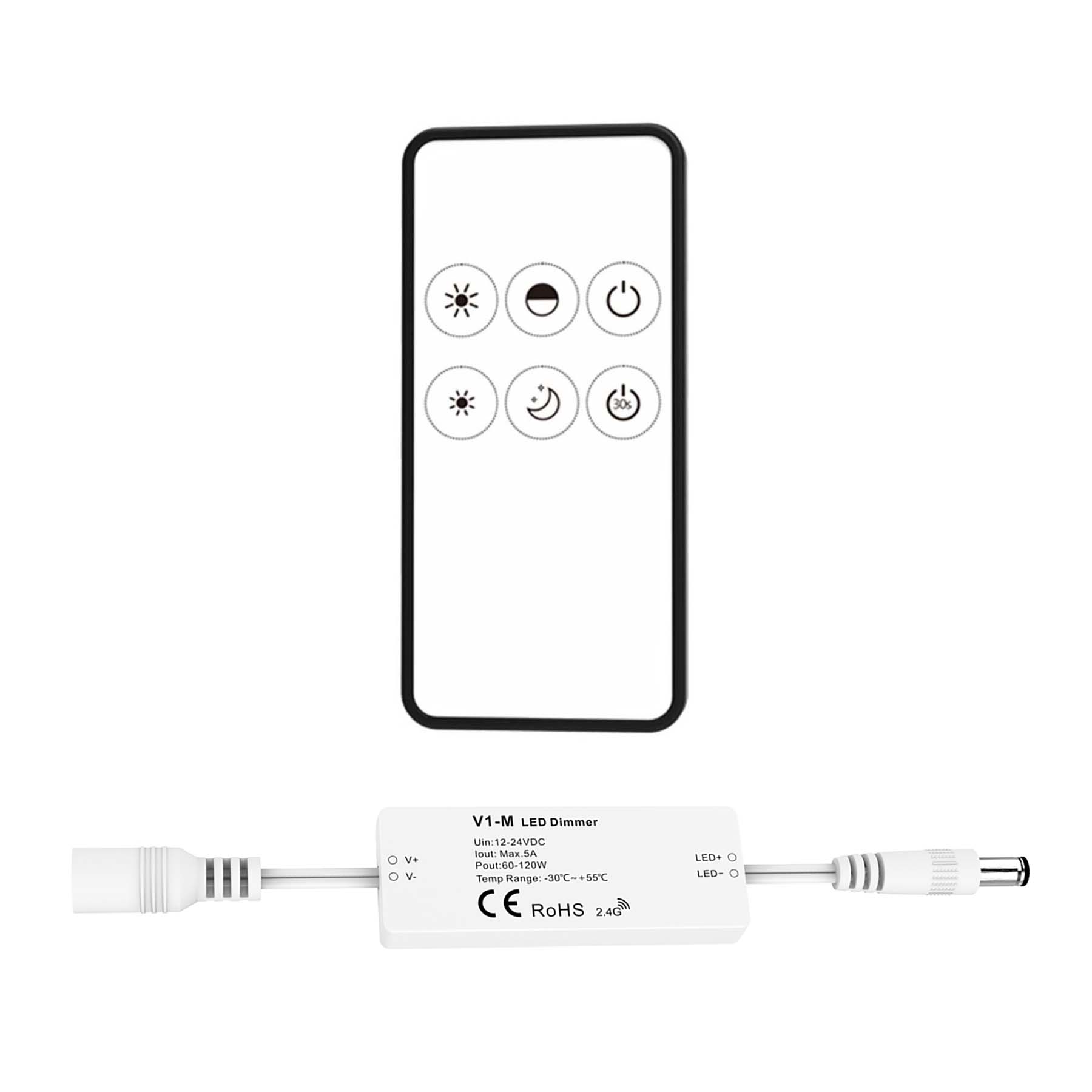

LED 12-24V DC Dimming Controller V1-M(D)
- Single channel 12-24V constant voltage RF controller for single colour LEDs (Strip Lights, Modules etc).
- DC Female 5.5mm DC Jack Input / DC Male 5.5mm Jack Output.
- Compatible with RF 2.4G Single and multi-zone remote control and can be paired with multiple controllers.
- 0-100% smooth dimming without flickering/flashing.

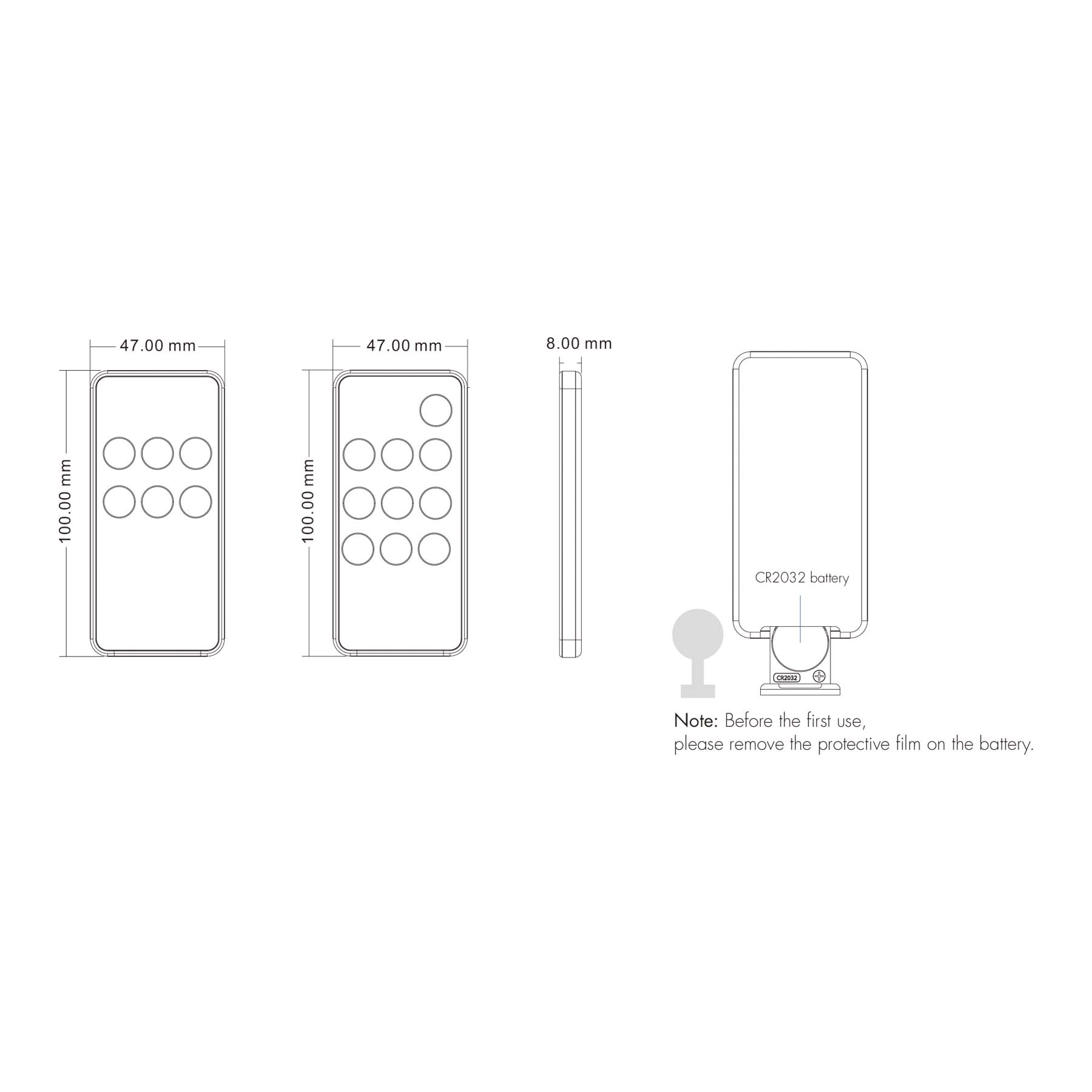

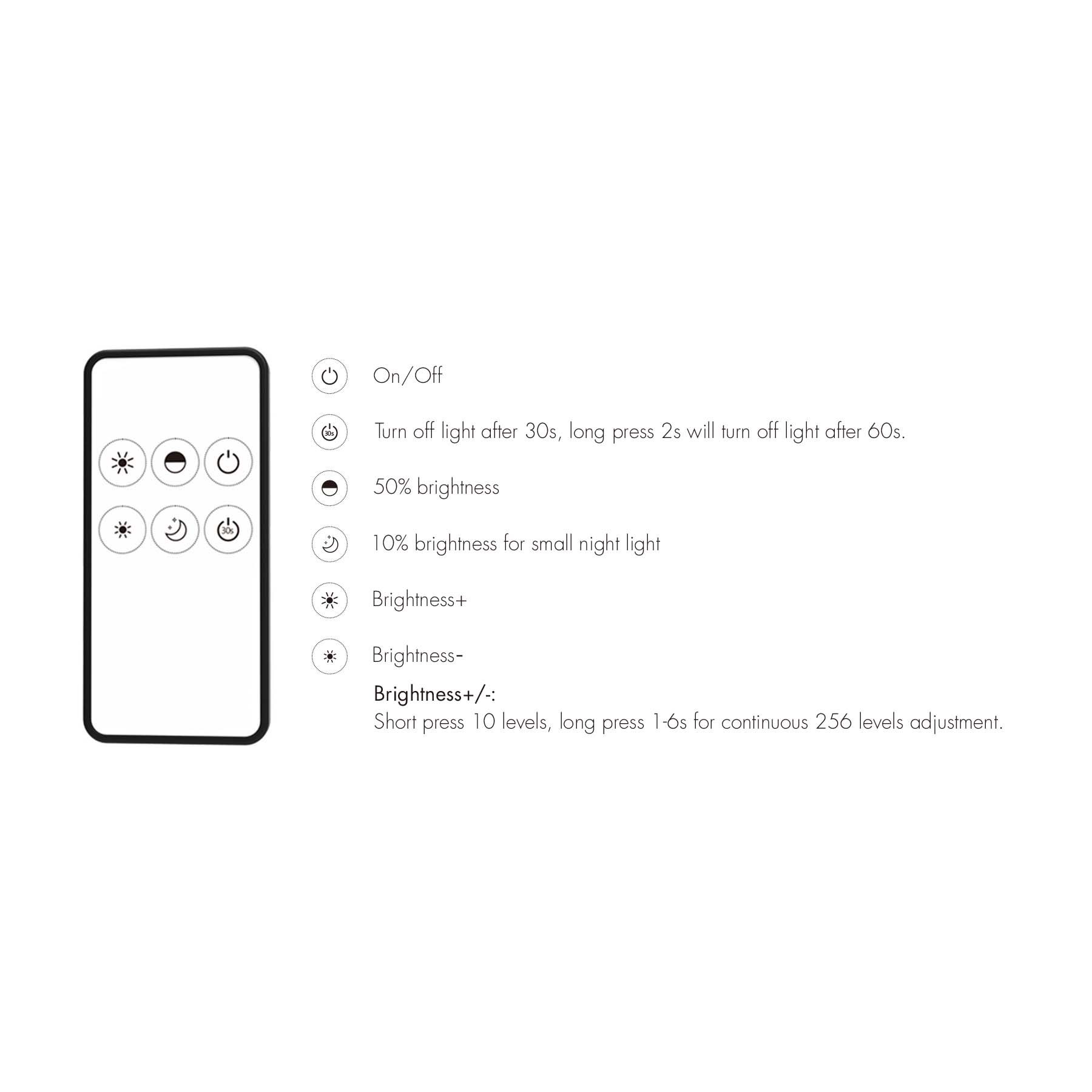

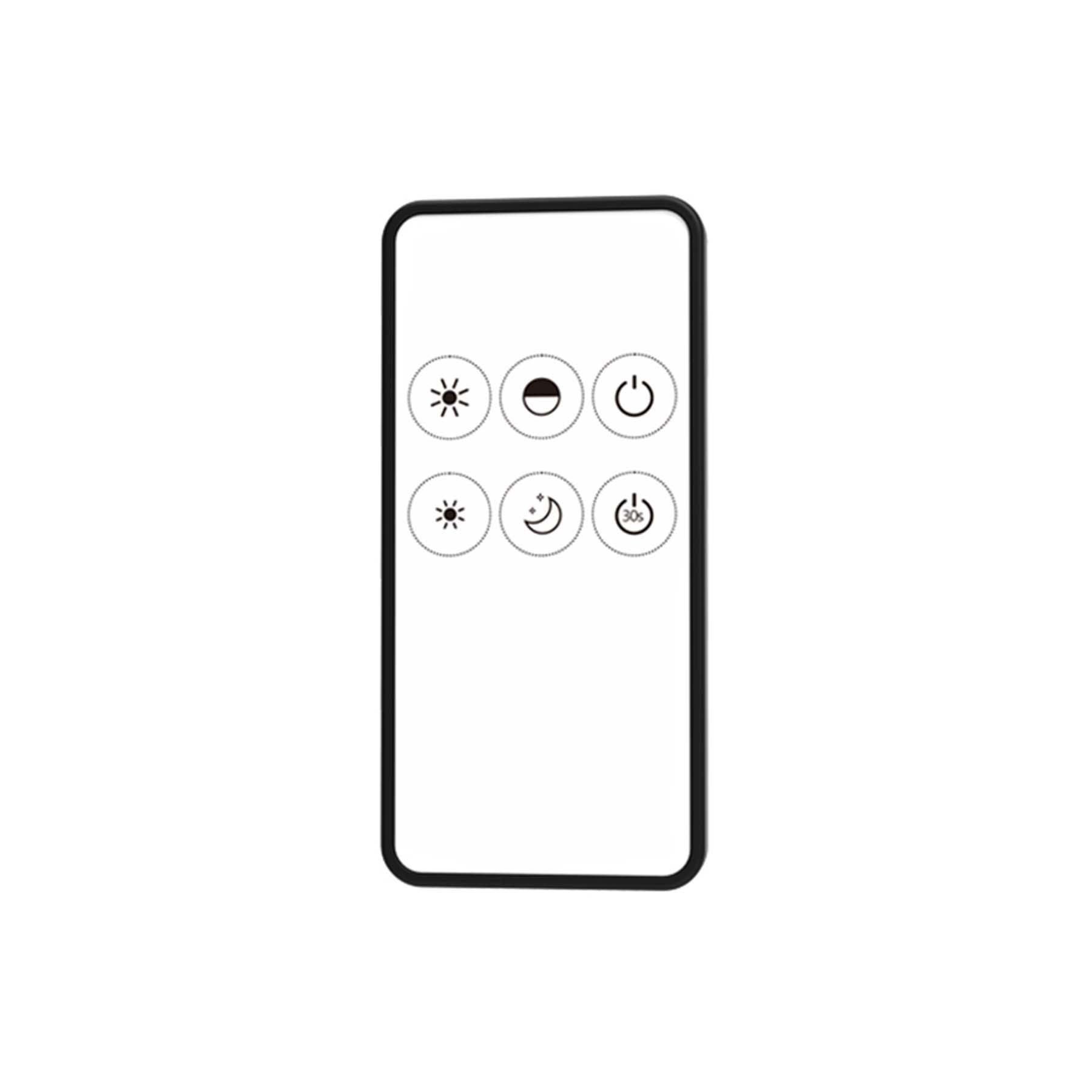

1 Zone Remote Control RM1
- For use with single-colour LEDs (Strip Lights, Modules etc).
- Simplicity in design with easy controls.
- Can be paired with multiple receivers simultaneously for synchronised control.
- Using RF 2.4GHz for guaranteed signal stability and blockages for up to 30M.
- CR2032 battery powered.
Wireless RF 2.4GHz

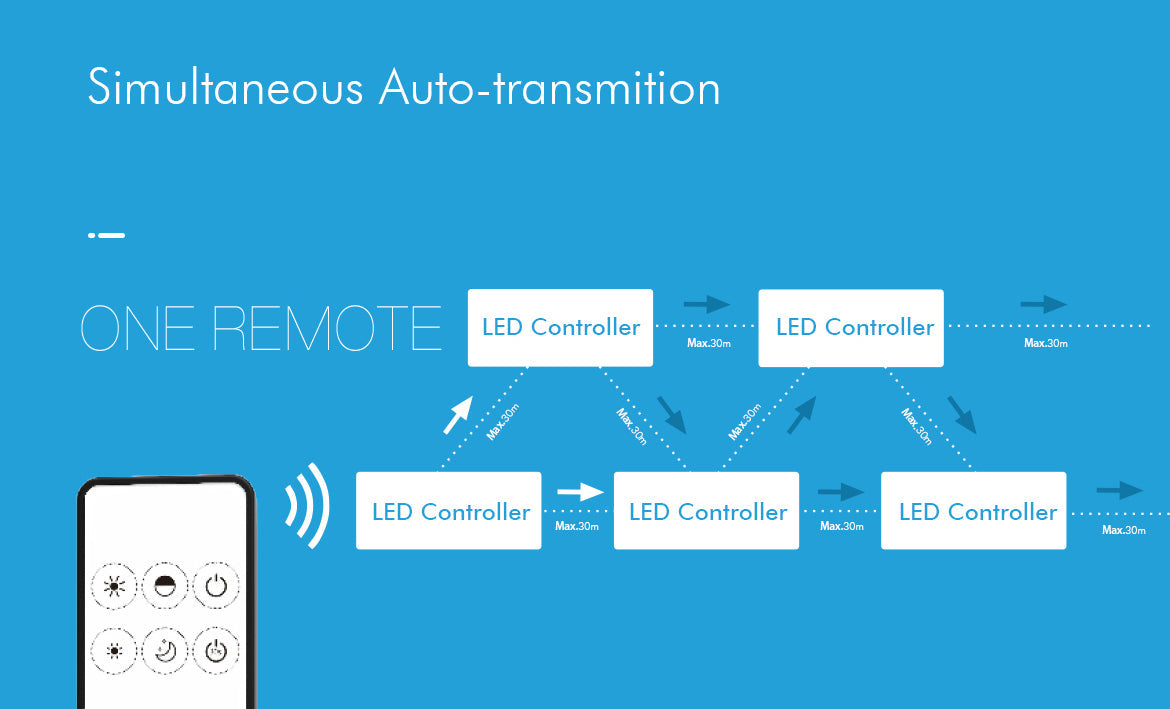

All remote and controllers that have wireless RF 2.4GHz built-in can be paired and communicates with one another. Typically, a single controller can pick up the signal from a remote within a range of 30 metres. If there are 2 controllers within the parameter of each other the signal range from a single remote would then increases to 60 metres, as each controller has an auto-transmitting function, hence, if more controllers are in use, then the signal can increase to more than 100 metres.
When multiple controllers are in use, they can carry out auto-synchronisation functions where they can be controlled by a single remote to perform a dynamic mode at the same response speed. While using a multizone remote allows individual control of multiple controllers.

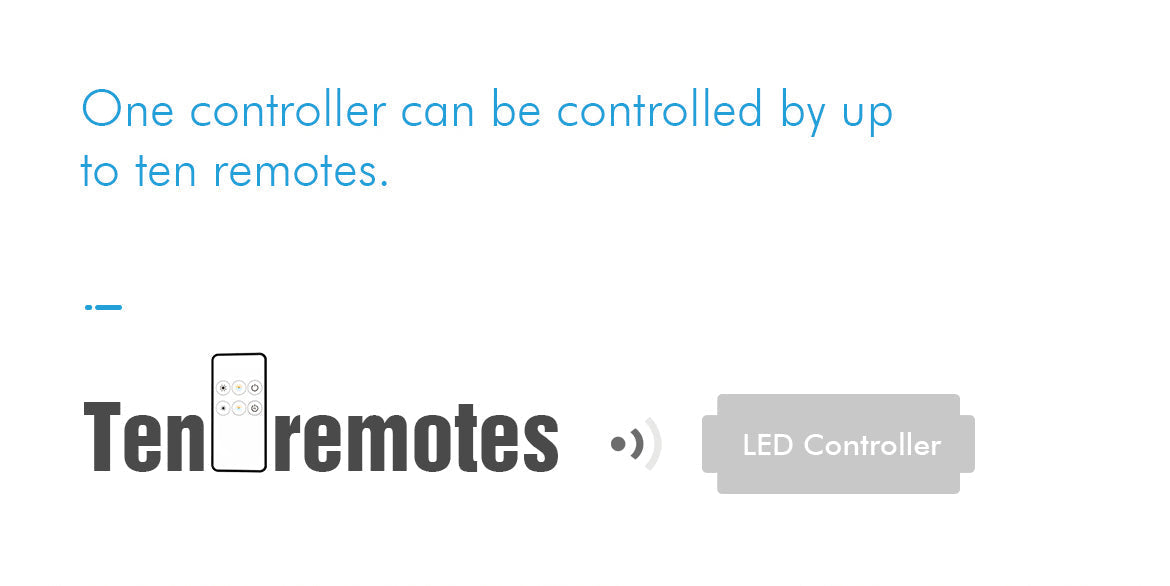

A single wireless RF 2.4GHz can be paired to an unlimited number of controllers allowing a single remote to control multiple rooms or areas. While a single controller can be paired with up to 10 remotes. This overall, will give a greater flexibility in the controls of multizone controls.
