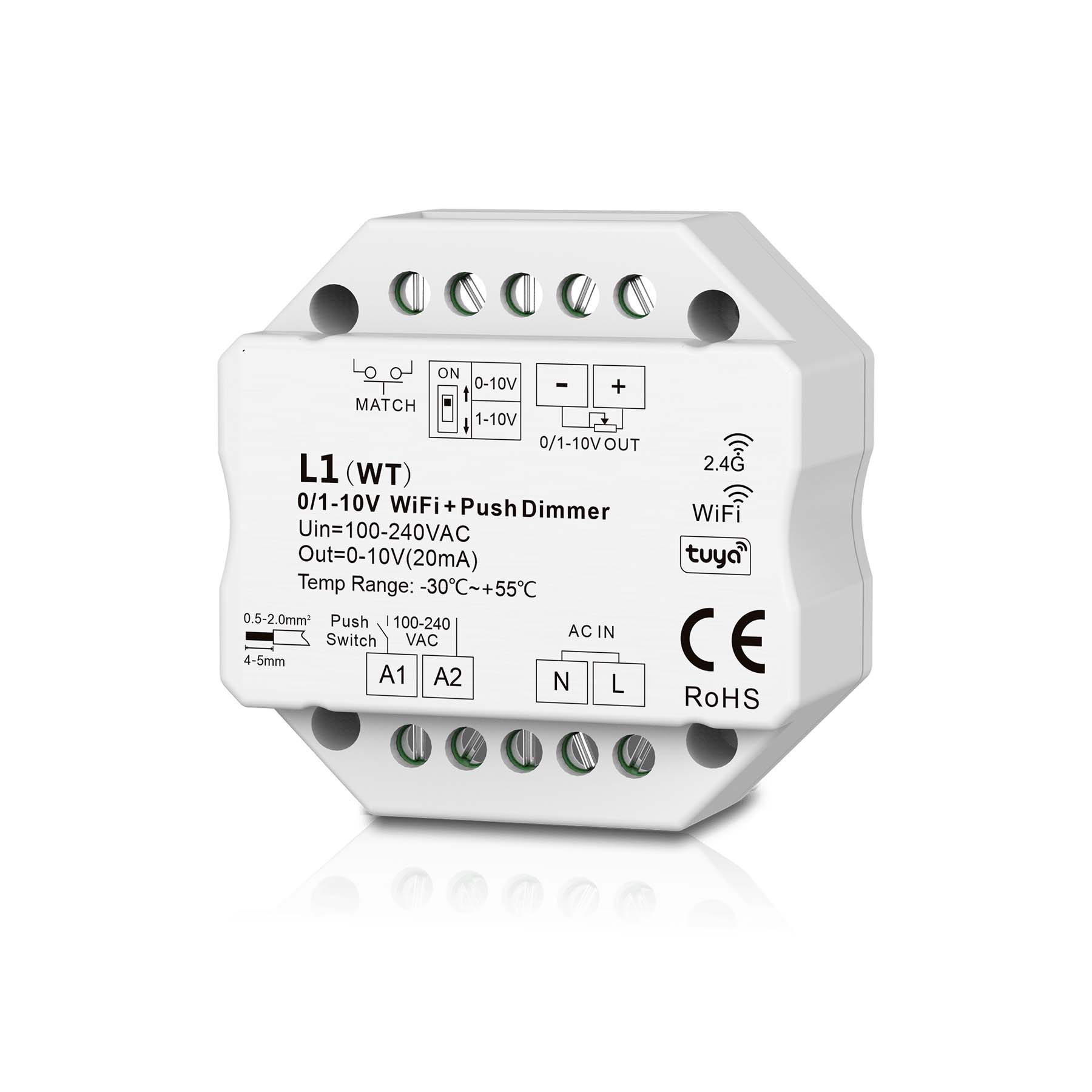

Output 1 channel 0/1-10V signal, connect with 0/1-10V dimmable driver.
Tuya APP cloud control, support on/off, brightness adjustments, delay turn on/off light, timer run, scene function.
Voice control, support Amazon ECHO and Tmall Genie smart speaker.
0-10V or 1-10V output selectable by DIP switch.
256 levels 0-100% dimming smoothly without any flash.
Compatibility with RF 2.4G single zone or multiple zones dimming remote control.
Each L1(WT) controller can also work as a WiFi-RF converter, then use the Tuya APP to control one or more RF dimming LED controllers or drivers simultaneously.

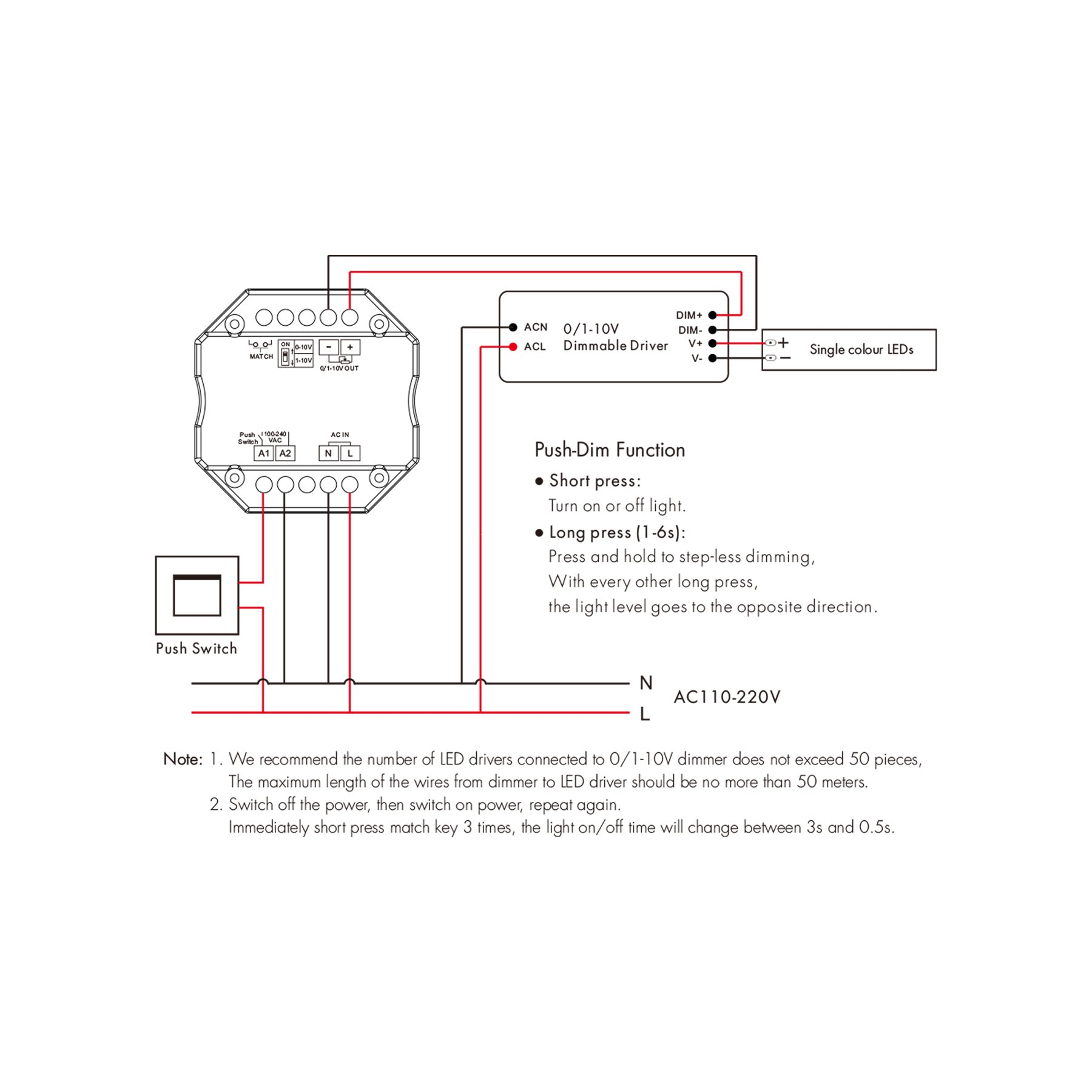

Connect with external push switch to achieve on/off and 0-100% dimming function.
Light on/off fade time 3s selectable.

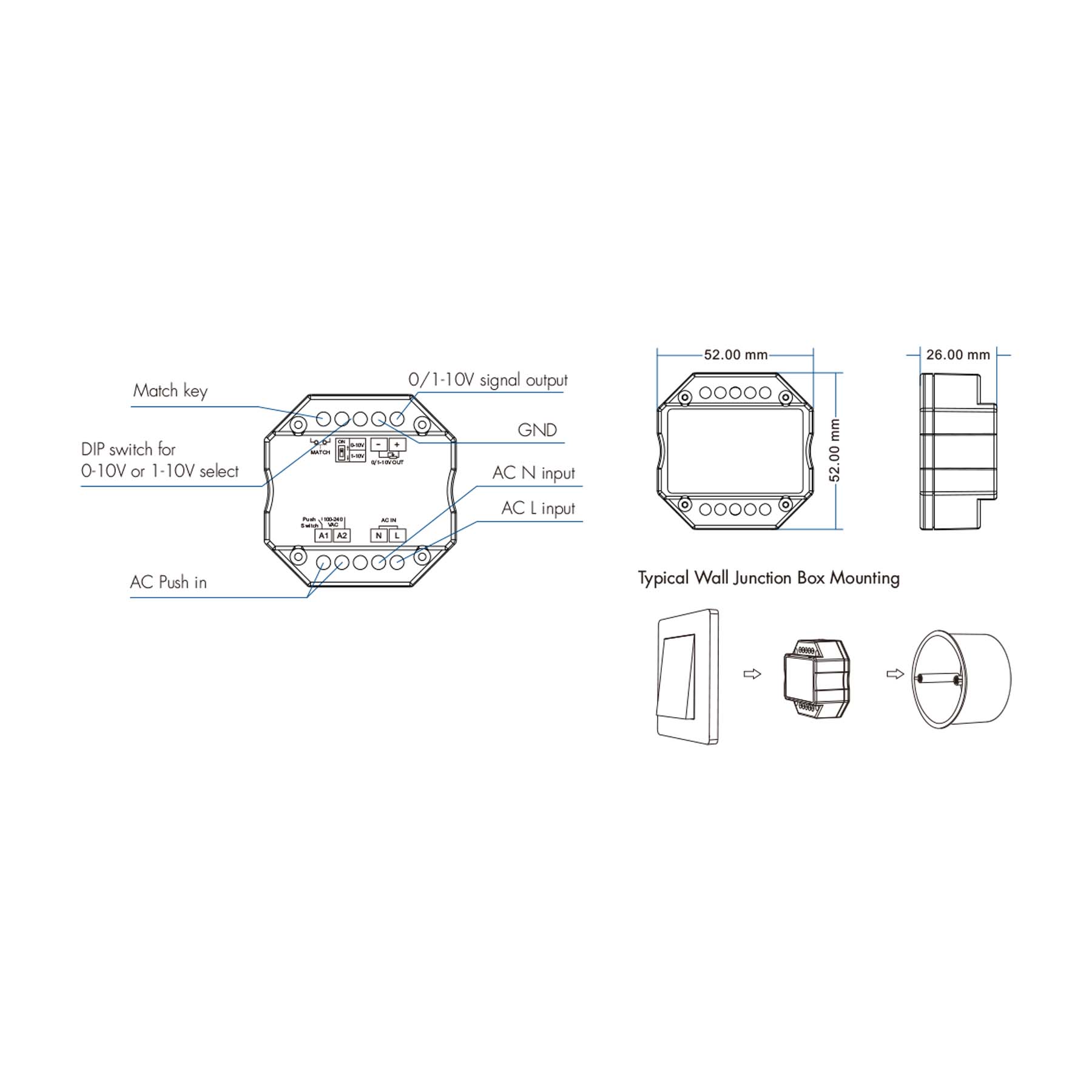

Easy to be placed in a standard wall junction box behind a push switch.
Note: This controller has Wi-Fi 2.4GHz built-in and is compatible with a downloadable APP, a pairing of a remote control is optional. You can fully control your lighting via the APP, but for additional control, we have a selection of remotes and touch panels available. Please scroll down to view all the options.
Fast Delivery28 Days ReturnsSecure Payment
Input Voltage: AC100-240V
Output Signal: 0/1-10V (20mA)
Input Signal: Tuya APP+RF 2.4GHz+Push Dim
RF Control Distance: 30M
Dimming Level: 256 Levels
Dimming Range: 0-100%
IP Rating: IP20
Working Temperature: -30°C to +55°C
Case Temperature: Max. +65°C
Dimension: 52(L)x52(W)x26(H)mm
EMC Standard: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4

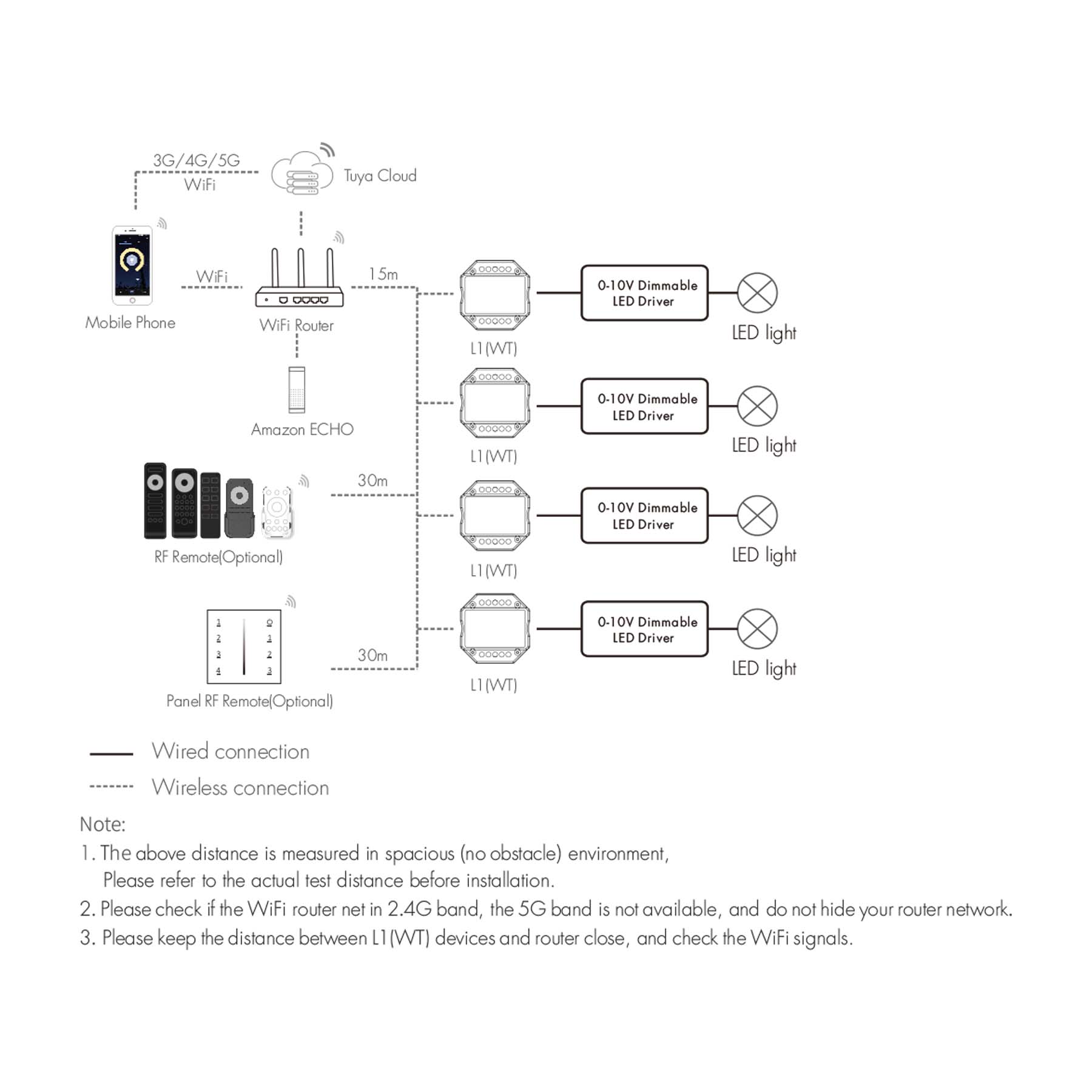

All remote and controllers that have wireless RF 2.4GHz built-in can be paired and communicates with one another. Typically, a single controller can pick up the signal from a remote within a range of 30 metres. If there are 2 controllers within the parameter of each other the signal range from a single remote would then increases to 60 metres, as each controller has an auto-transmitting function, hence, if more controllers are in use, then the signal can increase to more than 100 metres.
When multiple controllers are in use, they can carry out auto-synchronisation functions where they can be controlled by a single remote to perform a dynamic mode at the same response speed. While using a multizone remote allows individual control of multiple controllers.
A single wireless RF 2.4GHz can be paired to an unlimited number of controllers allowing a single remote to control multiple rooms or areas. While a single controller can be paired with up to 10 remotes. This overall, will give a greater flexibility in the controls of multizone controls.
