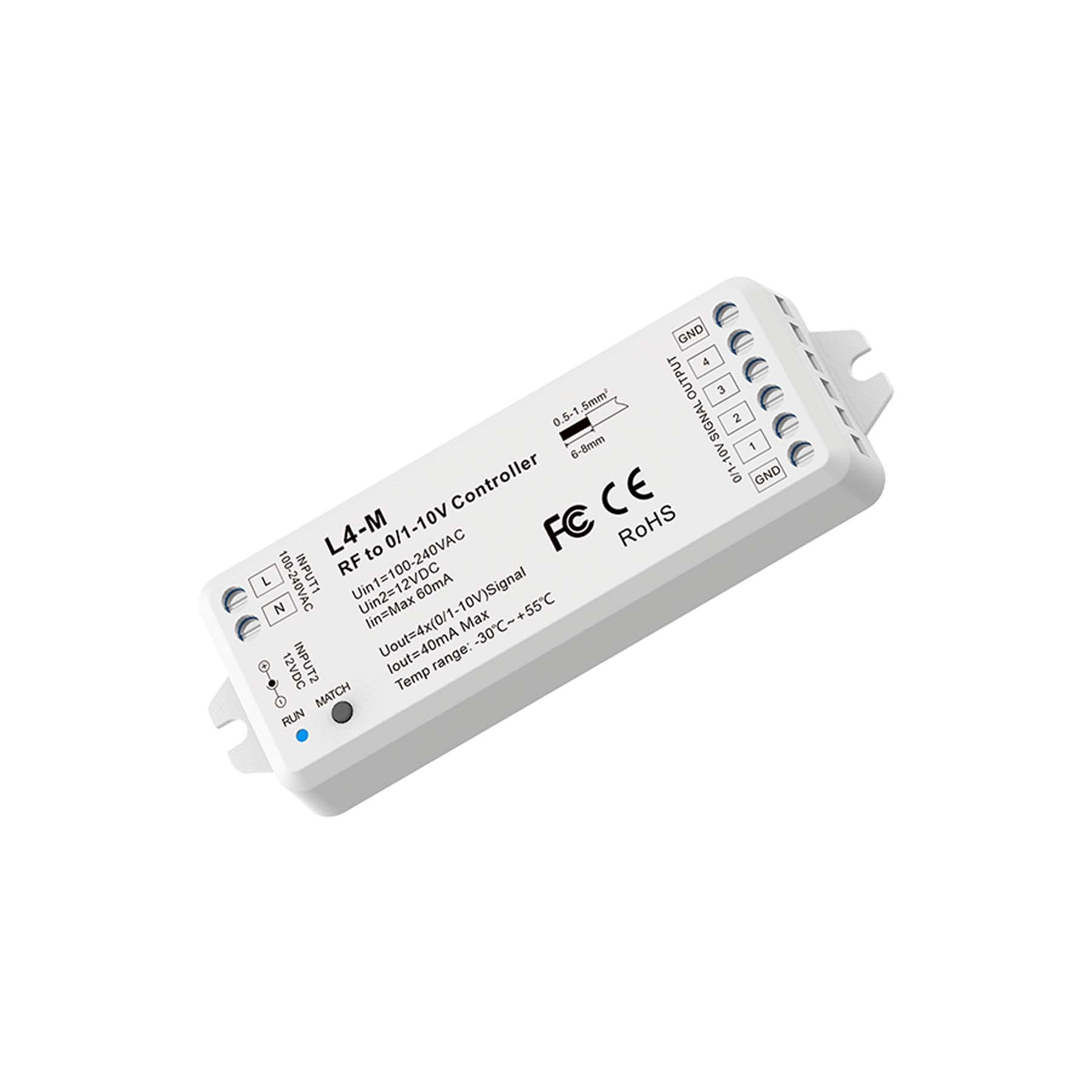

LED RF To 4 Channels 0-10V Dimmer L4-M
LED RF To 4 Channels 0-10V Dimmer L4-M
G.W.S. LED Store
53 Summer Lane
Birmingham B19 3TH
United Kingdom
- RF to 4 channel 0-10V converter, powered by AC or DC input.
- Output 4 channel 0-10V signal, connect with 0/1-10V dimmable driver.
- 256 levels 0-100% dimming, smoothly dim without any flash.
- Compatible with RF 2.4G single colour, CCT, RGB and RGBW remote control and can be paired with multiple controllers.
- Light on/off fade time 3s selectable.
Add compatible remote control
Add compatible remote control
Dimming Remote Controls
Wireless RF 2.4GHz
All remote and controllers that have wireless RF 2.4GHz built-in can be paired and communicates with one another. Typically, a single controller can pick up the signal from a remote within a range of 30 metres. If there are 2 controllers within the parameter of each other the signal range from a single remote would then increases to 60 metres, as each controller has an auto-transmitting function, hence, if more controllers are in use, then the signal can increase to more than 100 metres.
When multiple controllers are in use, they can carry out auto-synchronisation functions where they can be controlled by a single remote to perform a dynamic mode at the same response speed. While using a multizone remote allows individual control of multiple controllers.
A single wireless RF 2.4GHz can be paired to an unlimited number of controllers allowing a single remote to control multiple rooms or areas. While a single controller can be paired with up to 10 remotes. This overall, will give a greater flexibility in the controls of multizone controls.
