LED Slim Power Supply Transformer DC 12V-24V 60W-400W 2.5A-33A IP67
LED Slim Power Supply Transformer DC 12V-24V 60W-400W 2.5A-33A IP67
12V / 60W
G.W.S. LED Store
53 Summer Lane
Birmingham B19 3TH
United Kingdom

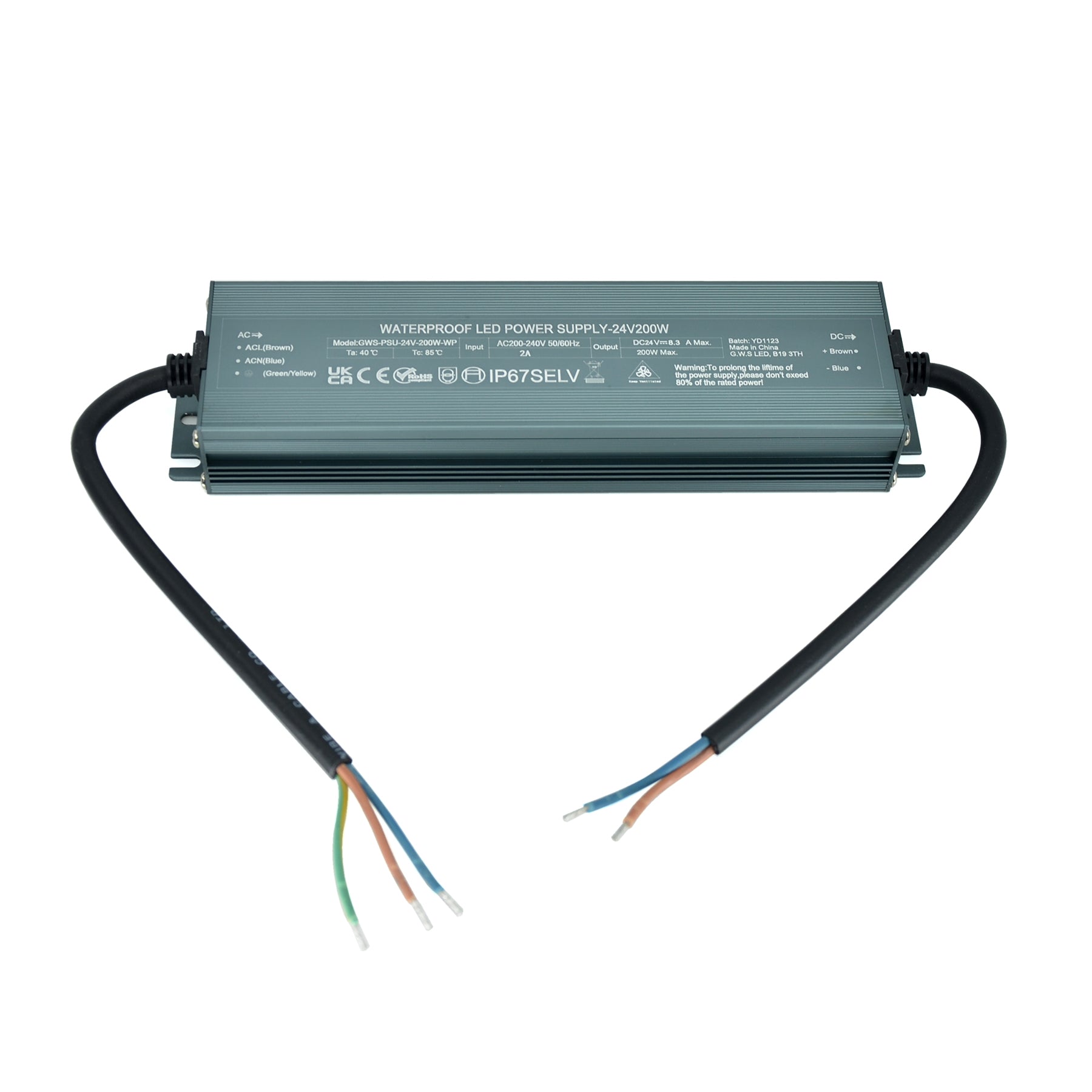

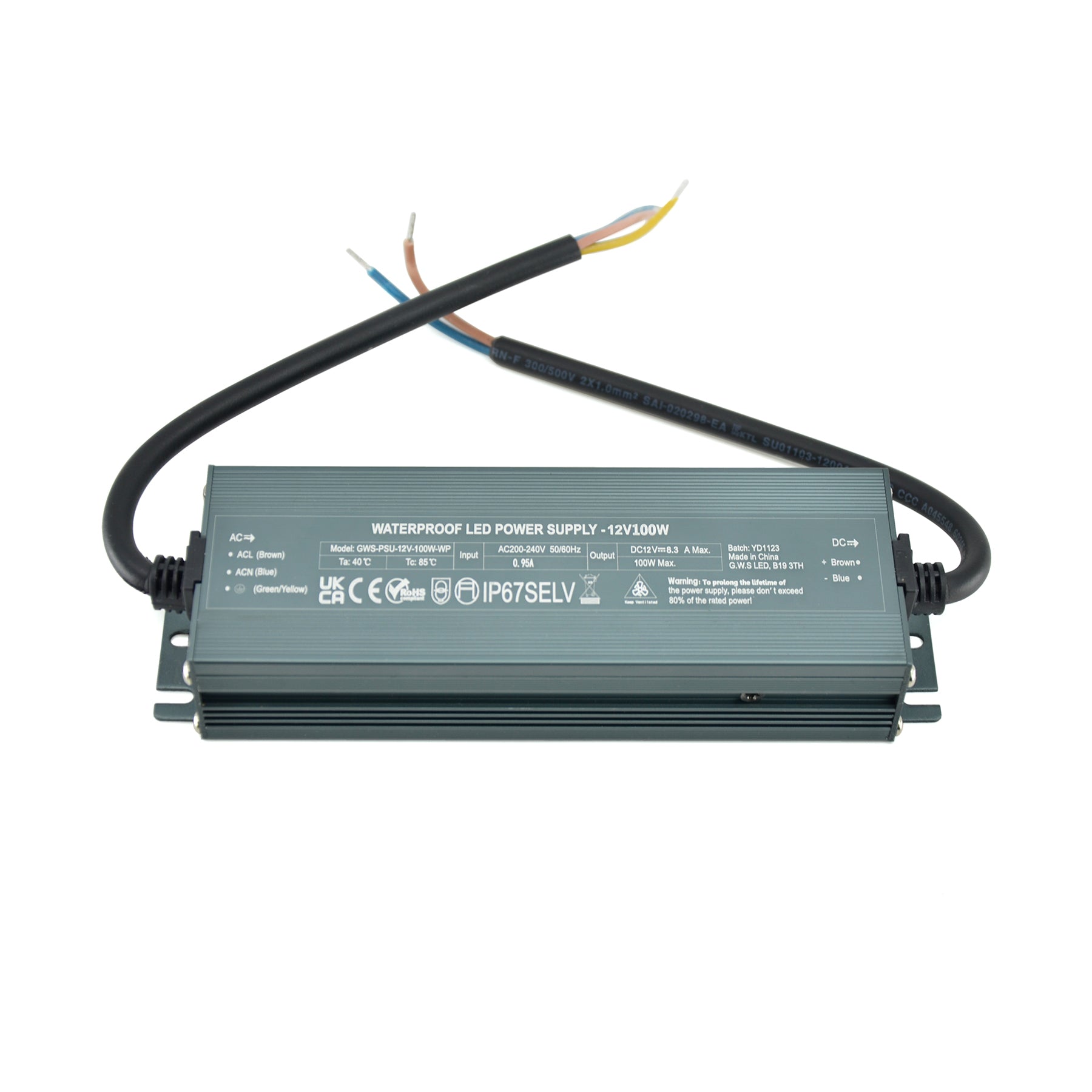

This slim constant voltage LED power supply collection (also known as LED transformer or LED driver) is designed to provide a reliable and stable DC output for a wide range of low-voltage LED lighting applications. Housed in a compact, weather-resistant aluminium casing (IP67 rated), this range is suitable for both indoor and outdoor use. Engineered for efficiency, durability, and safety, these transformers are ideal for powering 12V or 24V LED strips, modules, and other compatible lighting systems. The slimline design is perfect for installations with limited space, such as under cabinets, signage, or narrow lightbox frames.
Features:
- Constant Voltage Output - Provides a stable 12V or 24V DC output, ideal for LED strip lights, modules, and other low-voltage LED systems.
- IP67 Waterproof Rating - Fully sealed aluminium housing protects against dust, rain, and temporary submersion – suitable for outdoor or damp environments.
- Slimline Aluminium Casing - Compact and low-profile design allows for easy installation in tight spaces while aiding heat dissipation for long-term reliability.
- Short Circuit, Overload & Overheat Protection - Built-in safety mechanisms protect both the power supply and connected LED lights, ensuring long-lasting performance.
12V Models
Output Voltage |
Output Current |
Output Power |
Input Voltage |

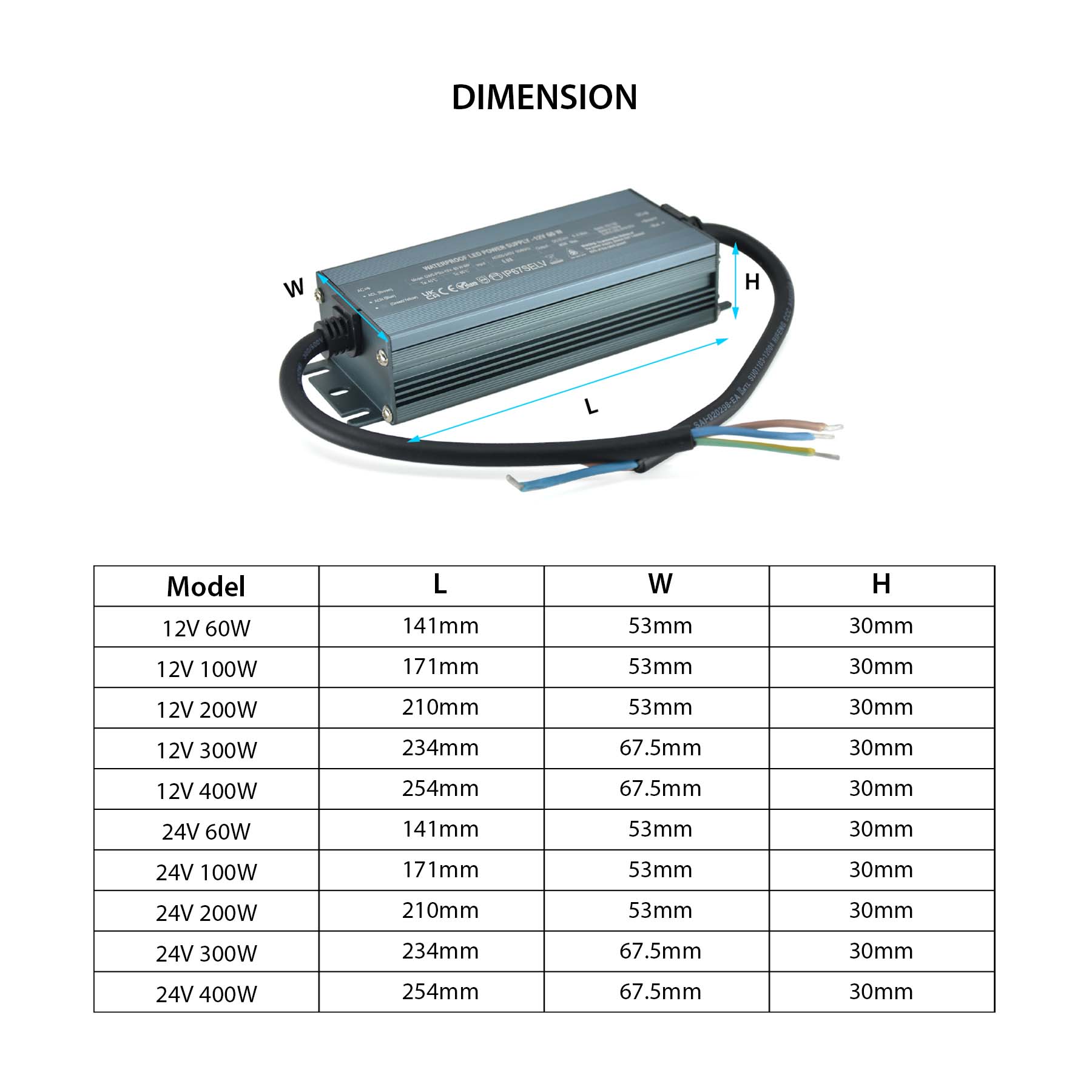

Dimension (mm) |

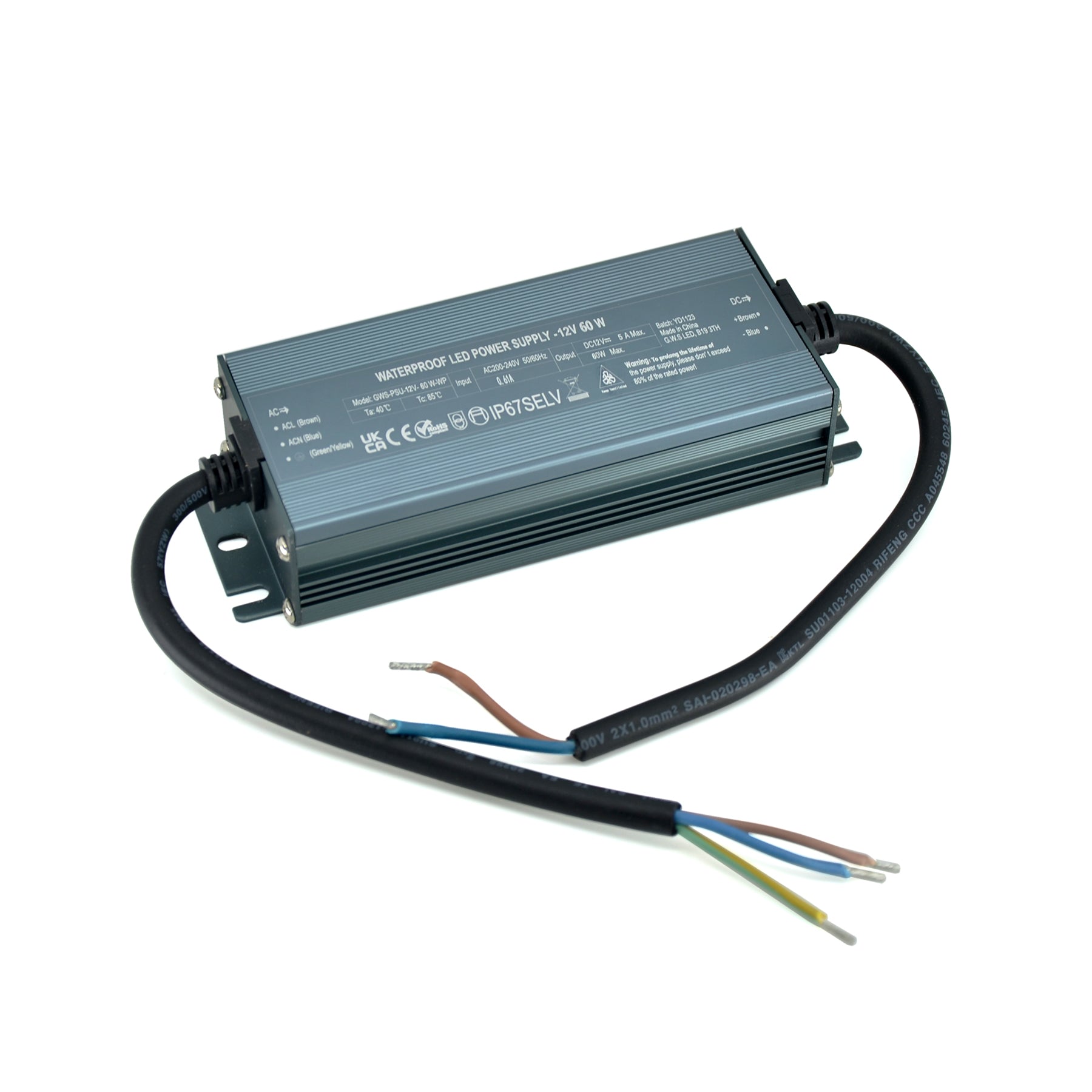

12V |
5A |
60W |
AC200-240V |
141(L)*53(W)*30(H) |
12V |
8.3A |
100W |
AC200-240V |
171(L)*53(W)*30(H) |

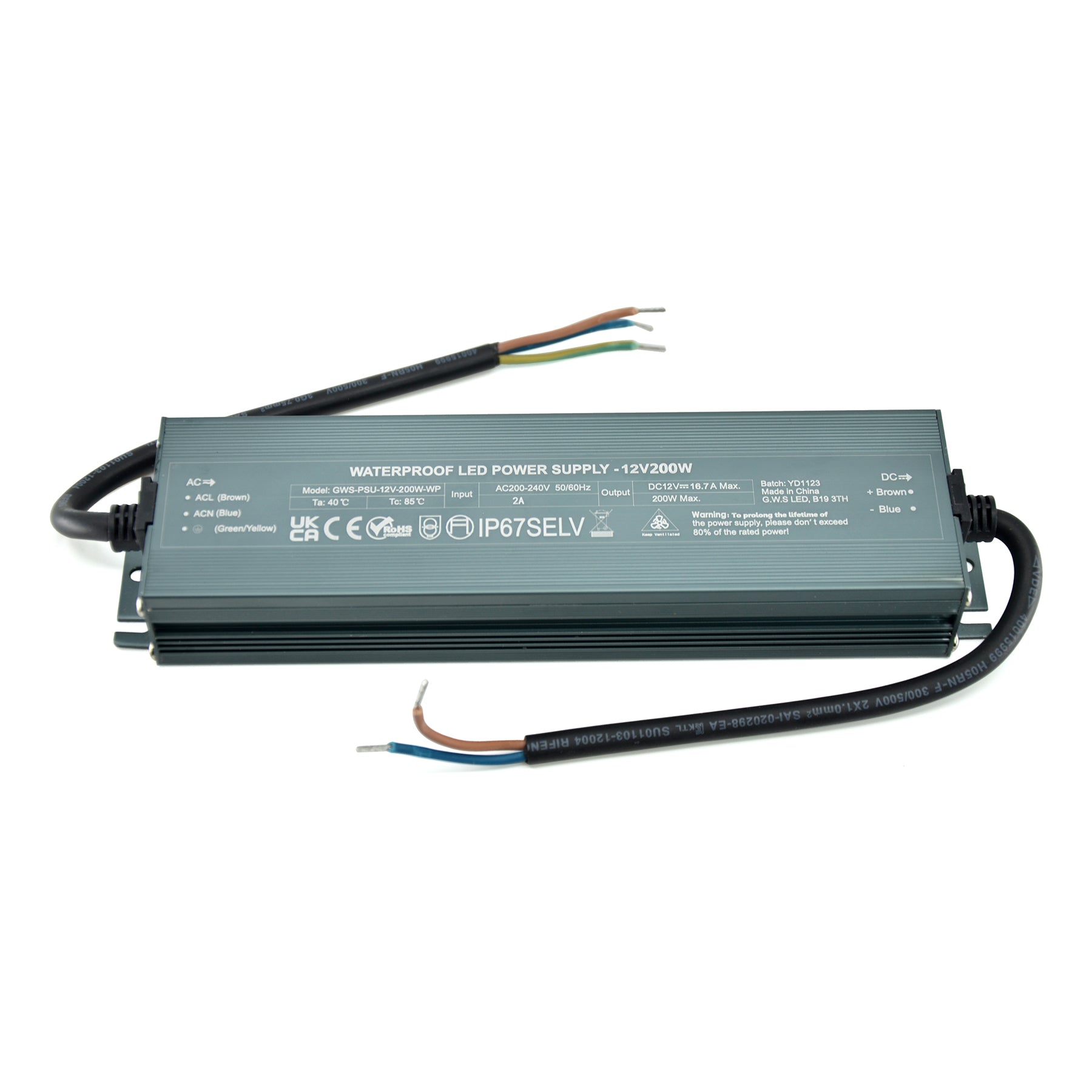

12V |
16.7A |
200W |
AC200-240V |
210(L)*53(W)*30(H) |

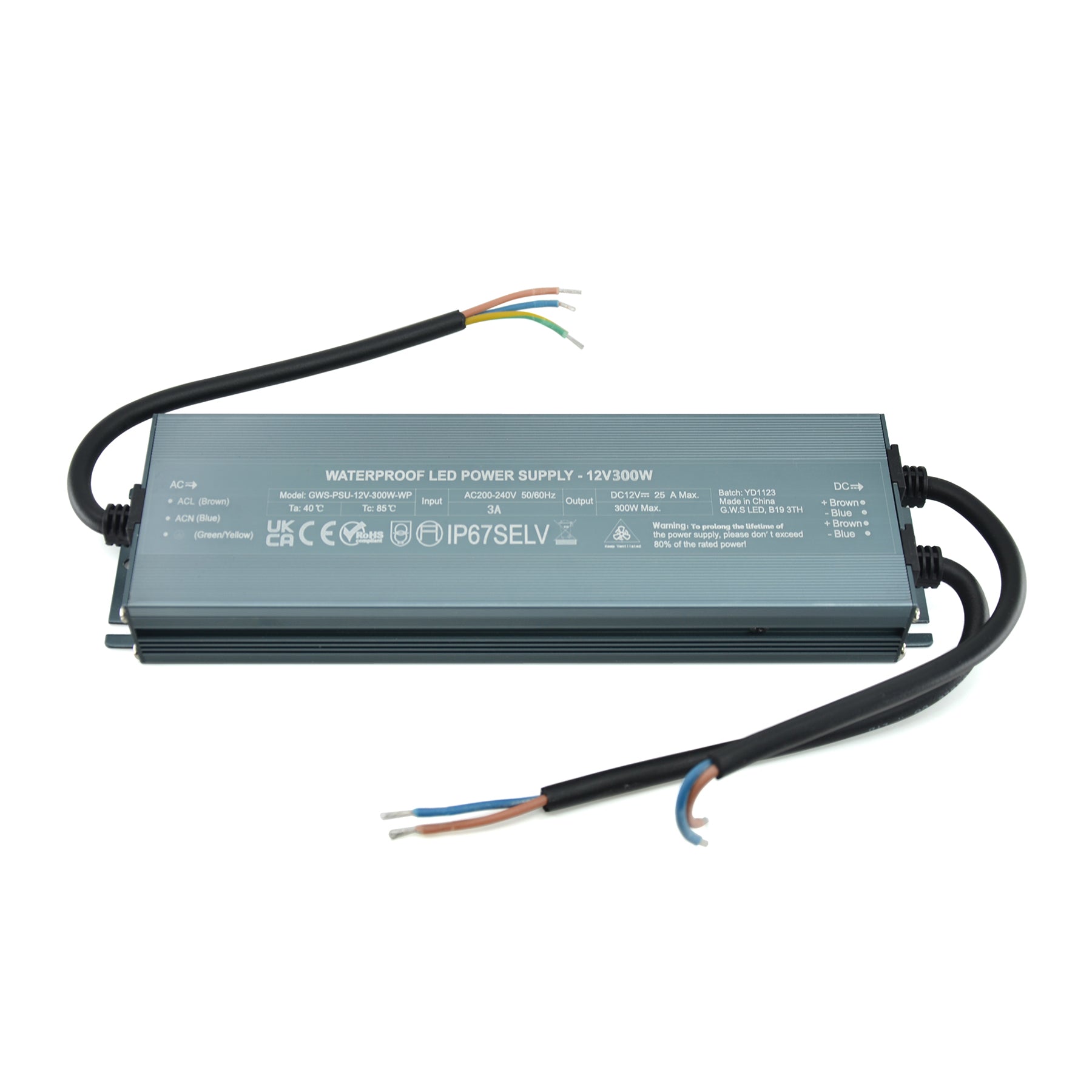

12V |
25A |
300W |
AC200-240V |
234(L)*67.5(W)*30(H) |

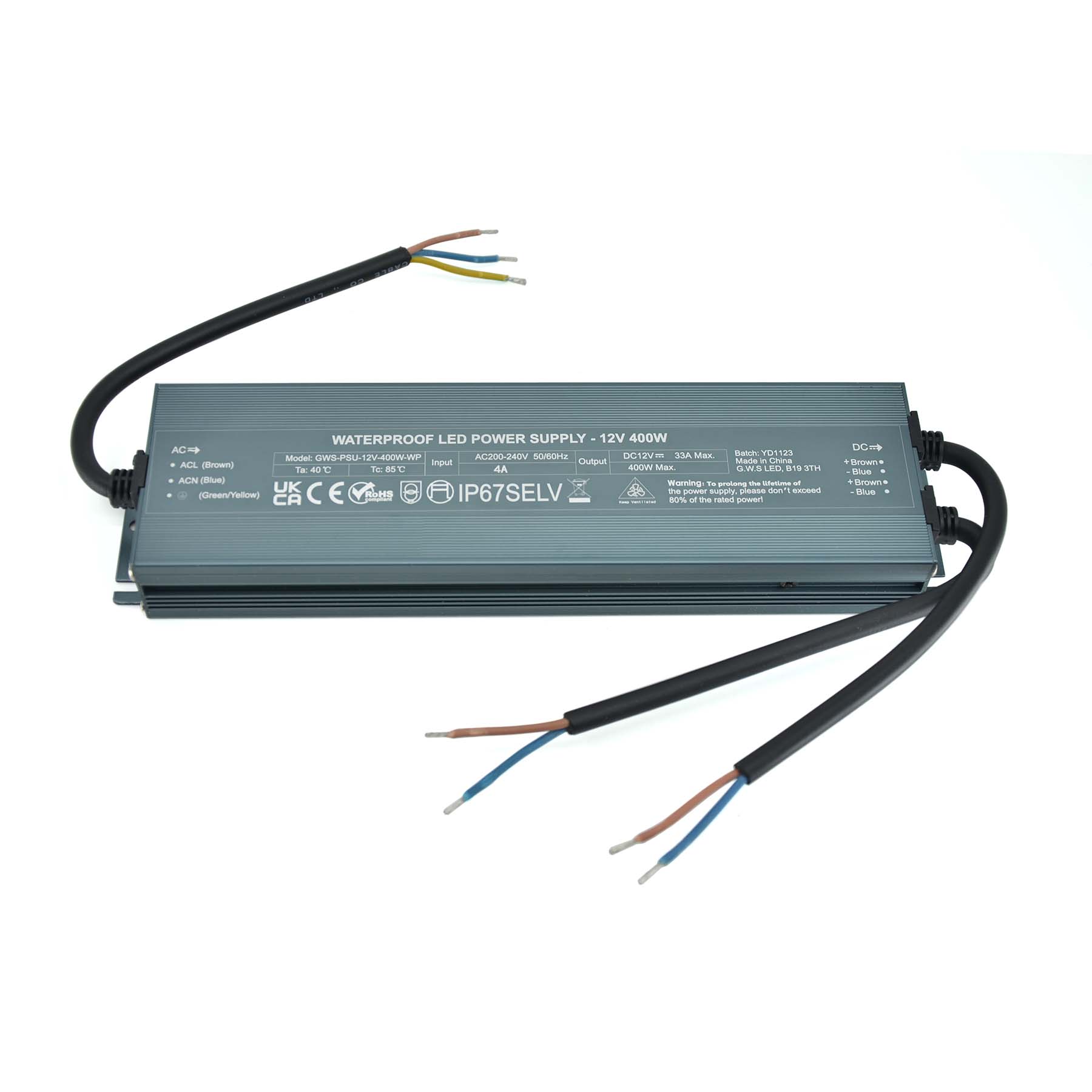

12V |
33A |
400W |
AC200-240V |
254(L)*67.5(W)*30(H) |
24V Models
Output Voltage |
Output Current |
Output Power |
Input Voltage |
Dimension (mm) |

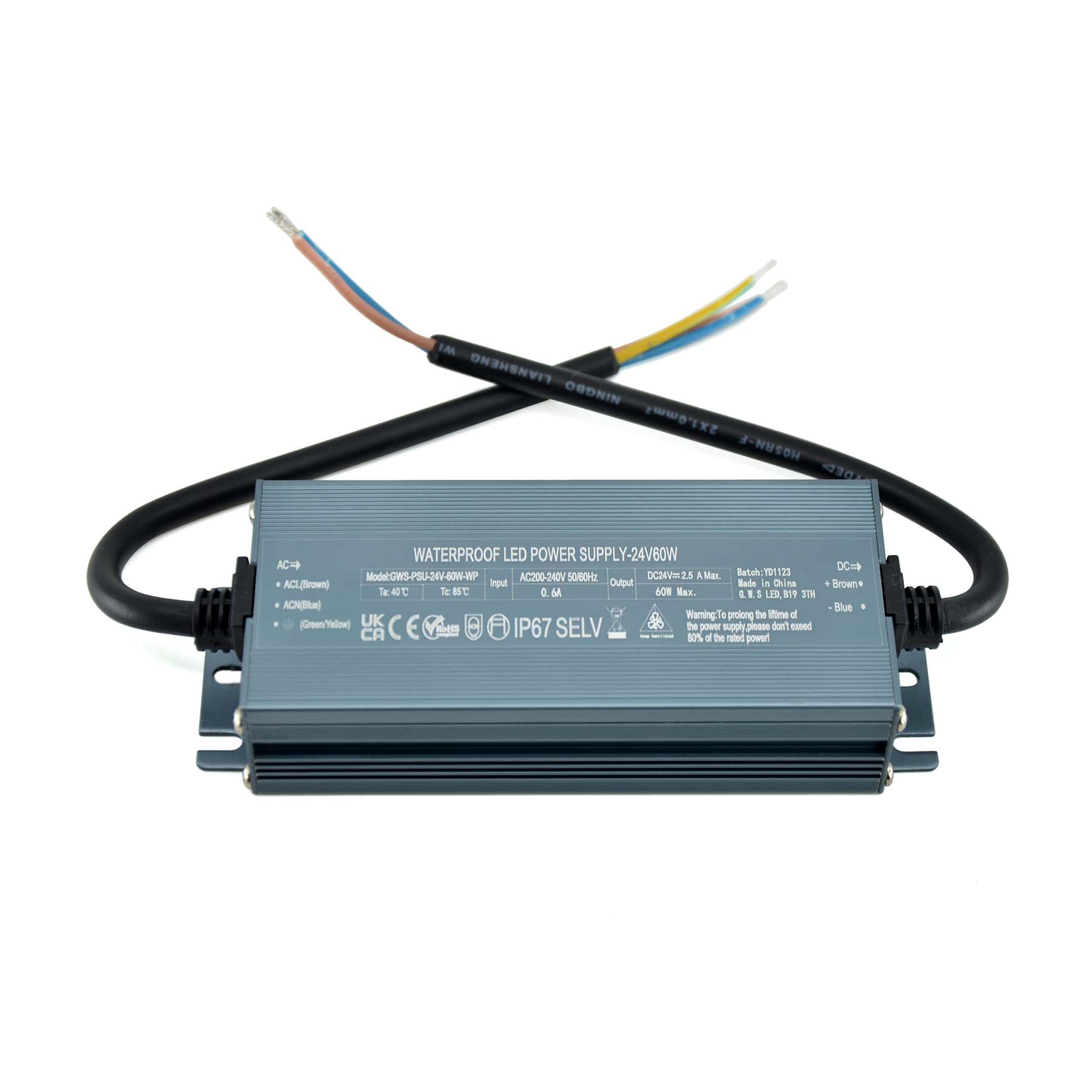

24V |
2.5A |
60W |
AC200-240V |
141(L)*53(W)*30(H) |

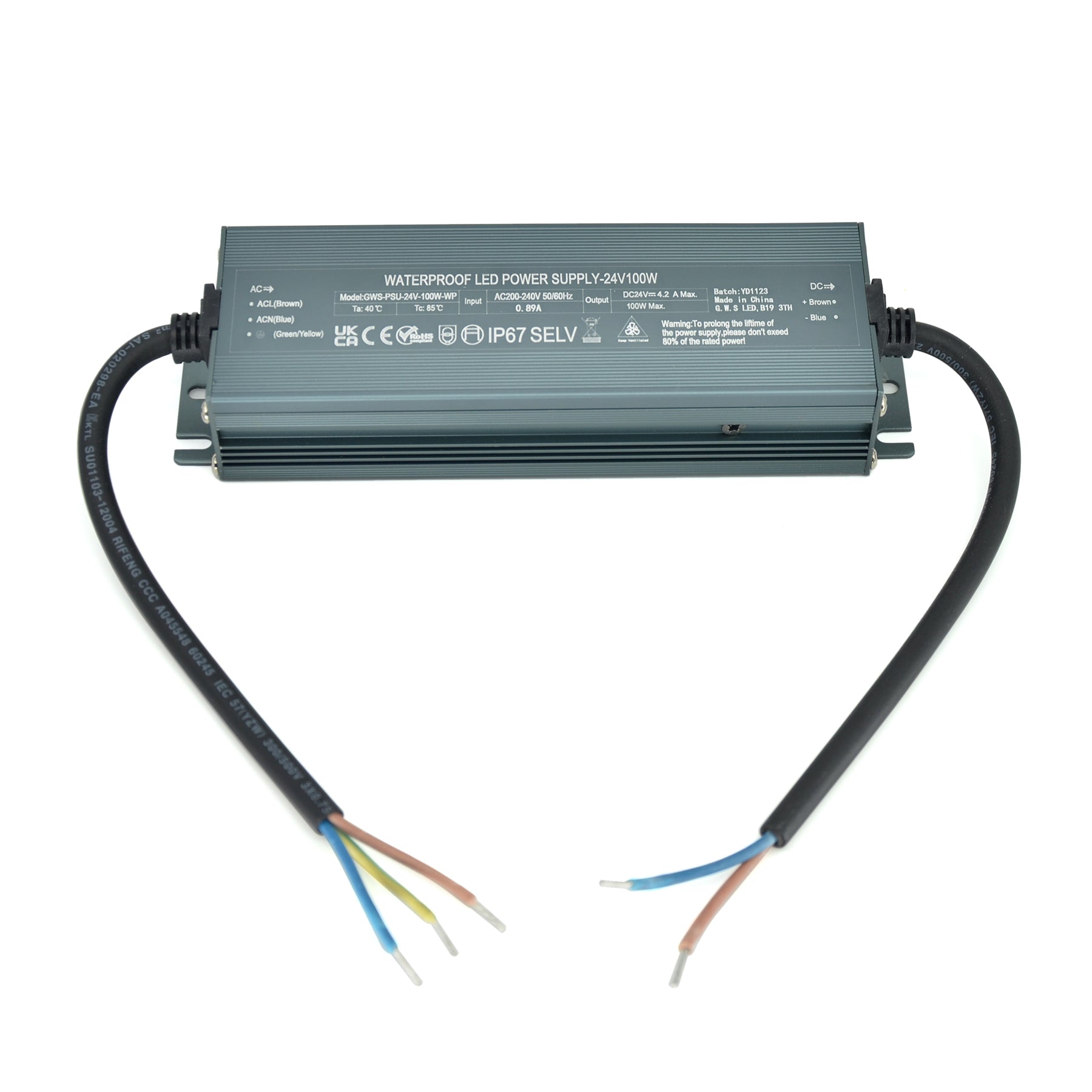

24V |
4.2A |
100W |
AC200-240V |
171(L)*53(W)*30(H) |
24V |
8.4A |
200W |
AC200-240V |
210(L)*53(W)*30(H) |

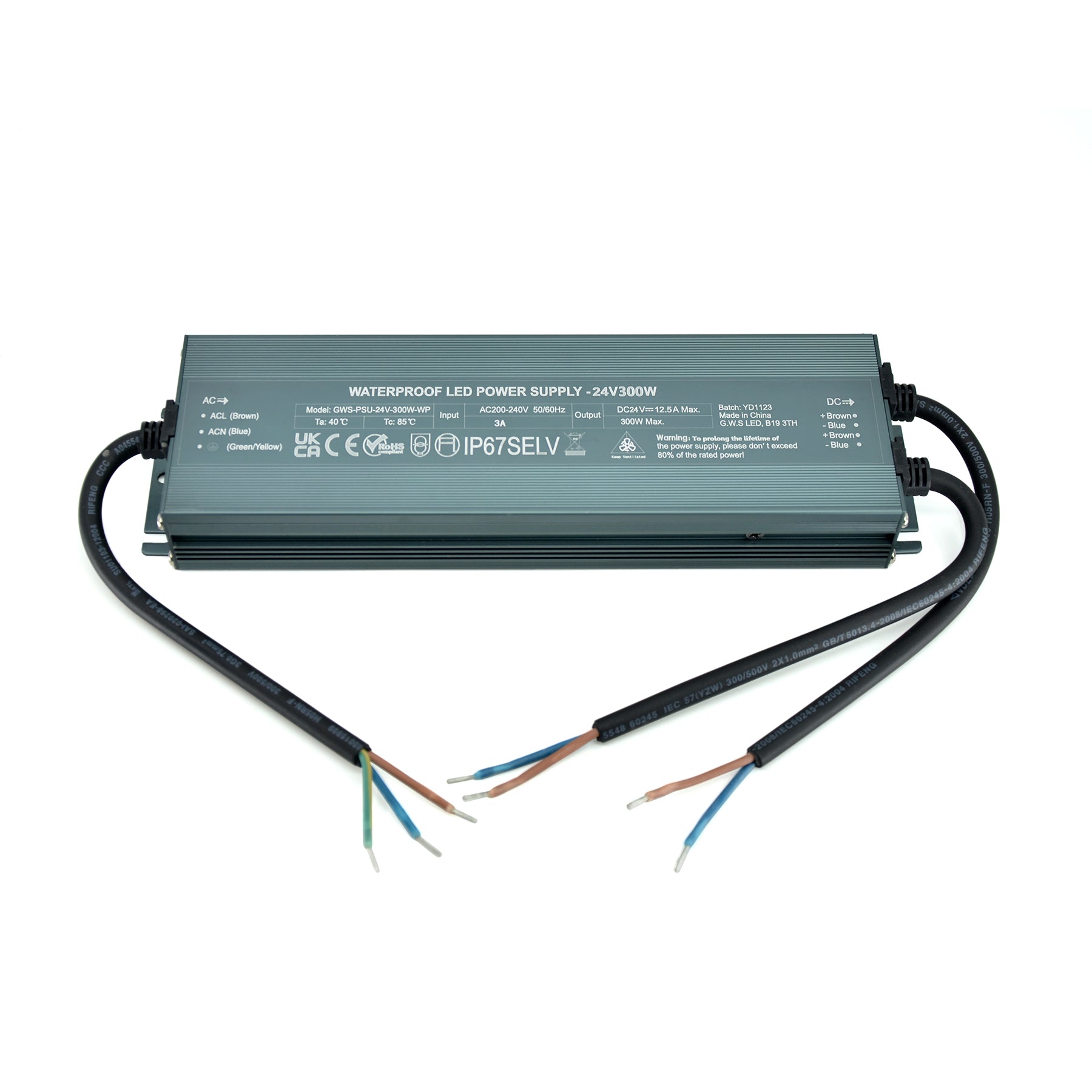

24V |
12.5A |
300W |
AC200-240V |
234(L)*67.5(W)*30(H) |

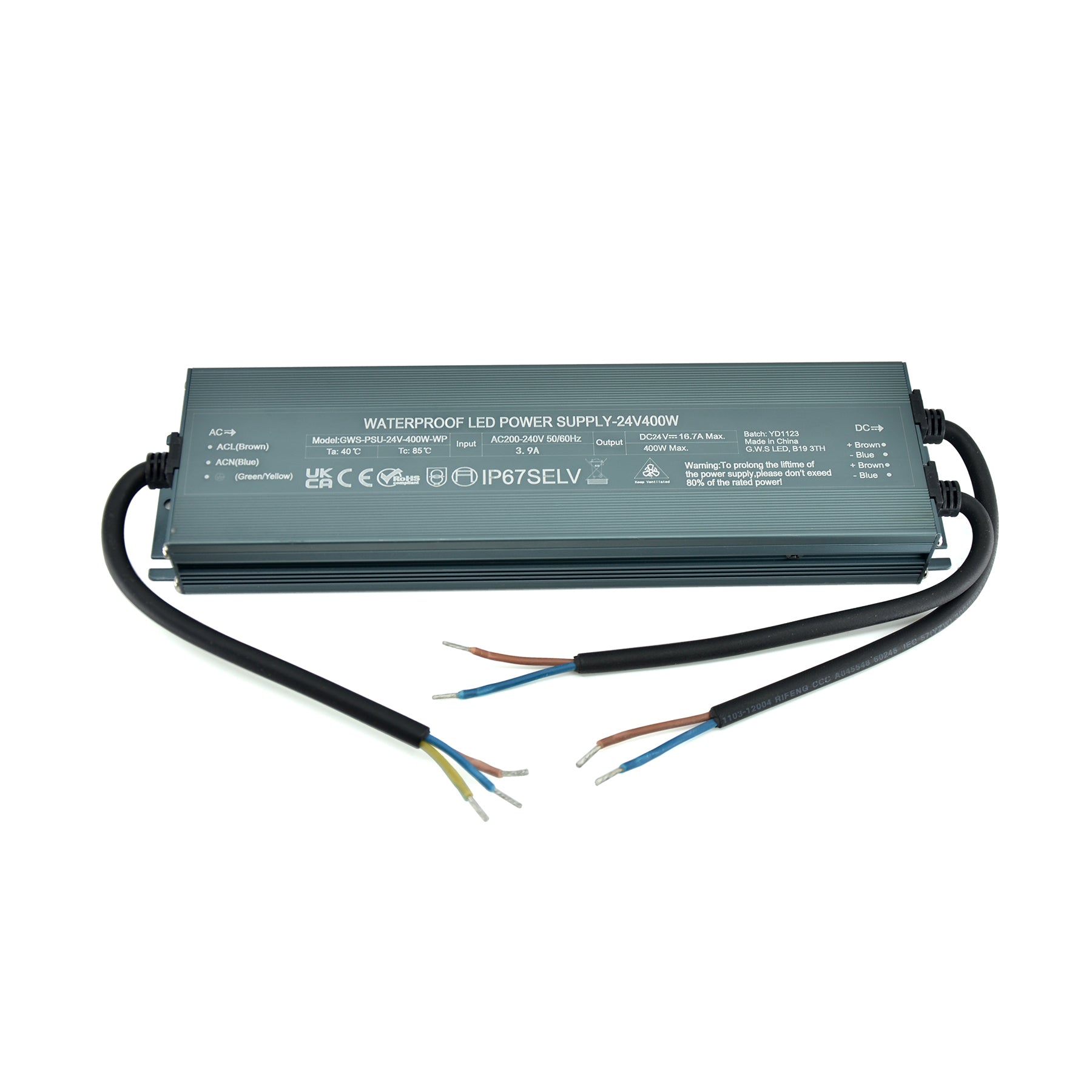

24V |
16.7A |
400W |
AC200-240V |
254(L)*67.5(W)*30(H) |
