Adjustable Beam Angle Surface Mounted LED Aluminium Profile – 15° to 90° (342-M1619)
VAT included. Shipping calculated at checkout
Adjustable Beam Angle Surface Mounted LED Aluminium Profile – 15° to 90° (342-M1619)
Silver / 1M / 1
G.W.S. LED Store
53 Summer Lane
Birmingham B19 3TH
United Kingdom
Contact Us
General Enquiries: info@gws-led.co.uk
Sales Enquiries: sales@gws-led.co.uk
Telephone: +44 121 393 3998
Live Chat: Our customer service and technical support teams are available via live chat during our opening hours.
Opening Hours:
Monday – Friday: 9:30am – 5:30pm
Saturday: 10:30am – 4:30pm
Sunday: Closed
Bank Holidays: Closed
Address:
G.W.S. LED Wholesale Ltd.
53 Summer Lane
Birmingham
B19 3TH
United Kingdom
Contact Us
General Enquiries: info@gws-led.co.uk
Sales Enquiries: sales@gws-led.co.uk
Telephone: +44 121 393 3998
Live Chat: Our customer service and technical support teams are available via live chat during our opening hours.
Opening Hours:
Monday – Friday: 9:30am – 5:30pm
Saturday: 10:30am – 4:30pm
Sunday: Closed
Bank Holidays: Closed
Address:
G.W.S. LED Wholesale Ltd.
53 Summer Lane
Birmingham
B19 3TH
United Kingdom
Create anything from a precise, focused beam to wide, softly diffused illumination with this versatile adjustable beam angle LED aluminium profile.
Designed with an internal adjustment plate, the LED strip can be positioned to achieve 15°, 35°, 40°, 65° or 90° beam angles. This allows one profile to deliver a range of lighting effects, from highlighting architectural details with a narrow beam to providing broader illumination across walls and surfaces.
For further control, the adjustable mounting brackets allow the profile to be tilted, helping you direct the light towards a specific feature or area. The curved diffuser softens the output and helps reduce visible LED hotspots, while the aluminium housing protects the strip and supports heat dissipation.
With its clean, modern appearance, this surface-mounted profile is suitable for feature walls, ceilings, cabinetry and retail displays. It is a versatile choice for residential interiors, hotels, restaurants and other commercial spaces where both light distribution and direction matter.
Features:
- 5 Selectable Beam Angles – Adapt the light spread for accent, task or ambient lighting.
- Adjustable Mounting Brackets – Control the profile’s tilt and lighting direction.
- Curved Diffuser – Provides softer light output and a neat, finished appearance.
- Durable Aluminium Construction – Offers LED strip protection and assists with heat dissipation.
- Surface-Mounted Design – Suitable for installation on walls, ceilings and furniture.
Installation:

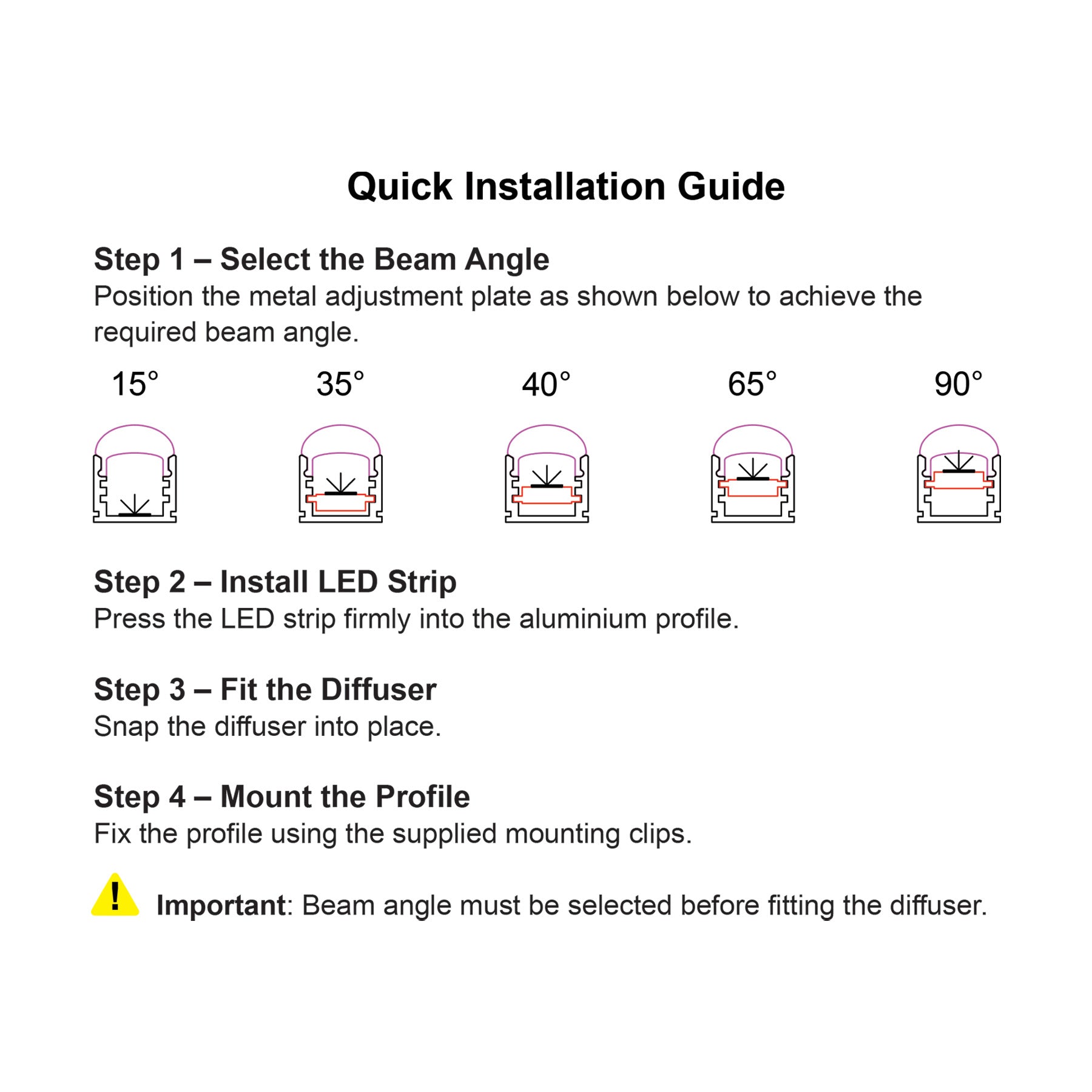

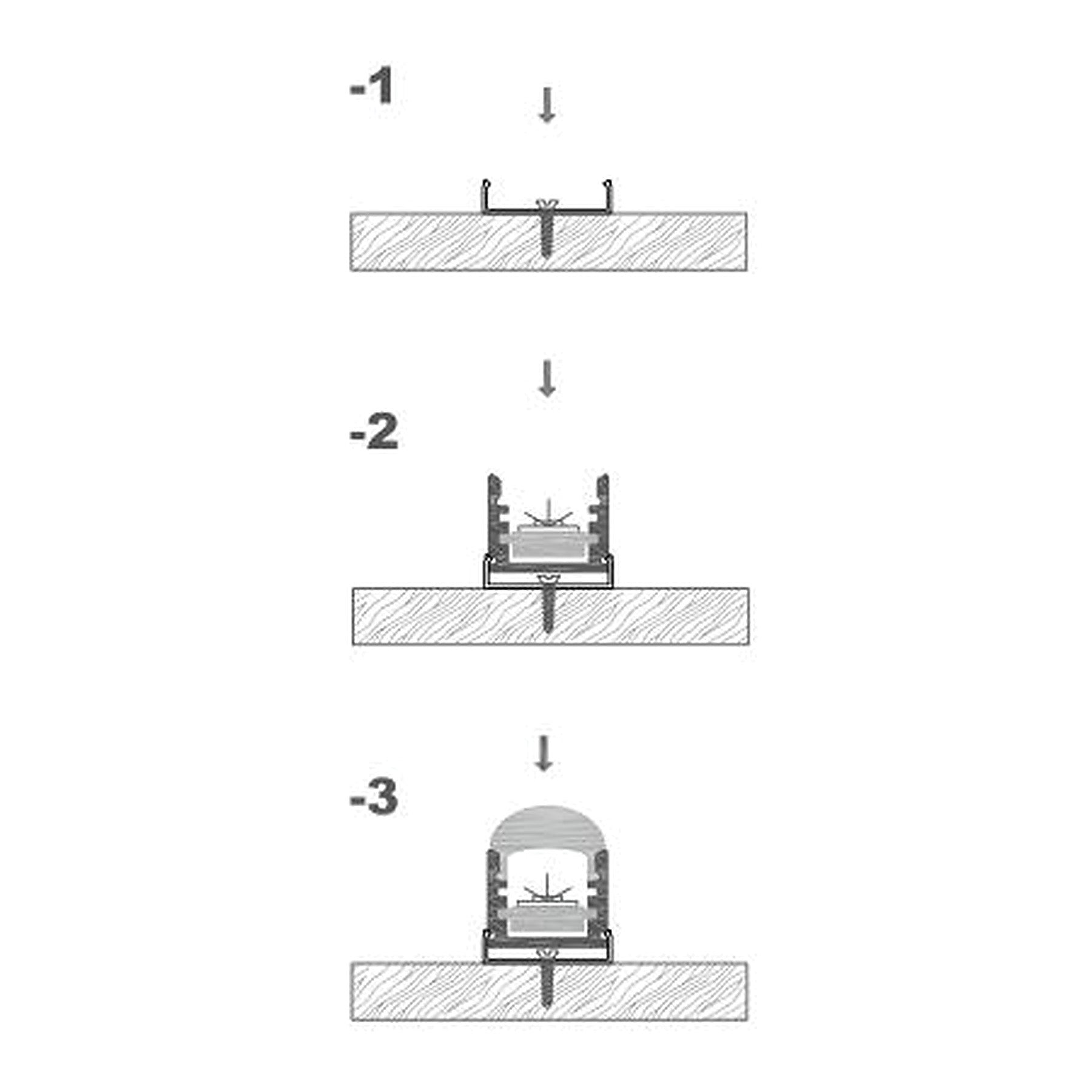

Position the internal plate for the required beam angle, fit the LED strip and attach the diffuser. Secure the profile using the mounting clips or adjustable mounting brackets, then fit the end caps.
- Brand: G.W.S LED
- Supplied With Diffuser, End Caps & Mounting Clips
- Material: Aluminium+Frosted PC
- Adjustable Beam Angles: 15° / 35° / 40° / 65° / 90°

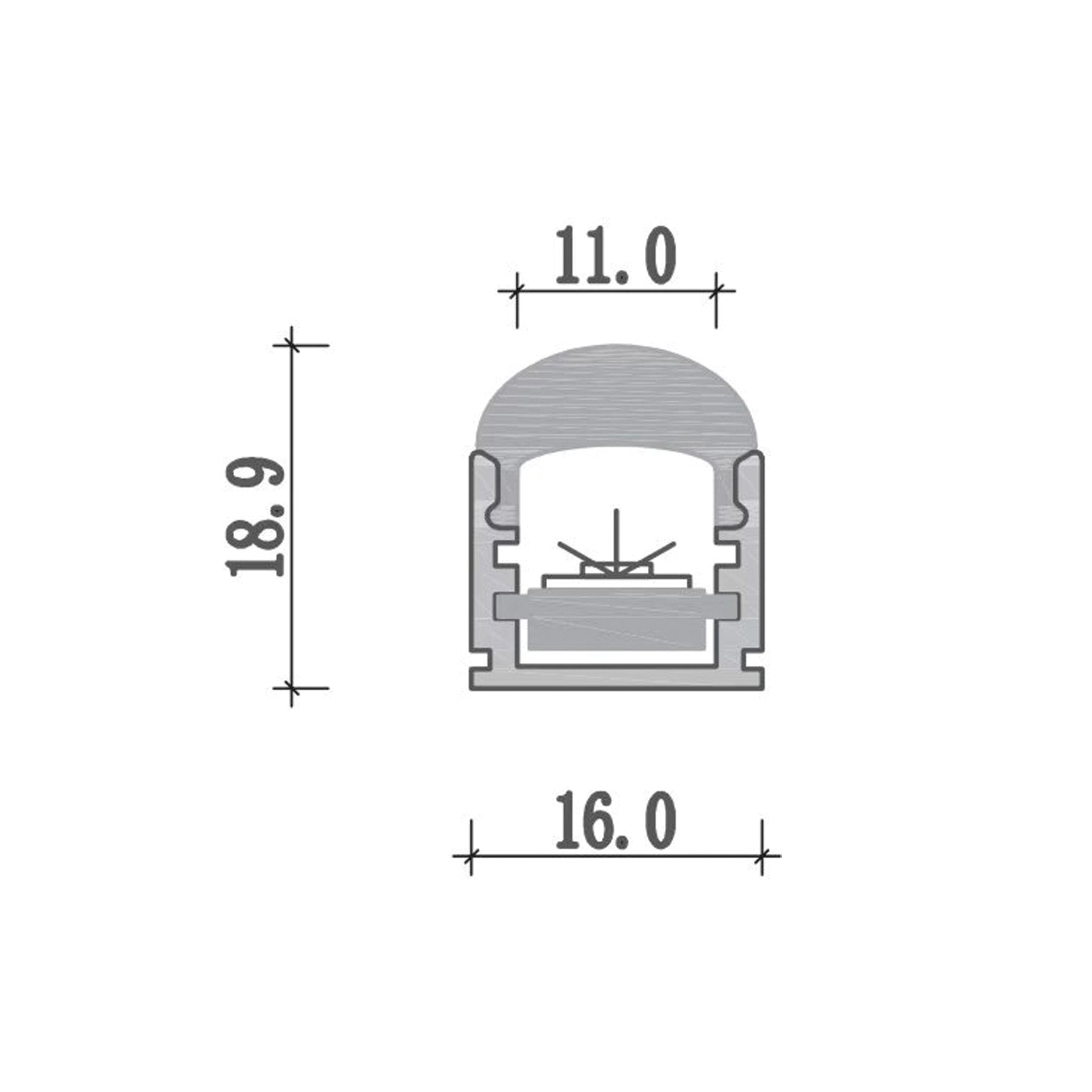

- Width: 16mm
- Height: 18.9mm
- Internal Width: 11mm
- Max Strip Light Width: 10mm
- Surface Treatment: Anodising
- Transmittance: 80%
- Warranty: 5 Years
LED COB Strip Lights:
- LED COB Strip Light - 24V, 5mm Wide, IP20
- LED COB Strip Light - 24V, 8mm Wide, IP20, 30mm Cut
- LED COB Strip Light - 24V, 8mm Wide, IP20, 10mm Cut
- LED COB Strip Light CCT - 24V, 10mm Wide, IP20
- LED COB Strip Light RGB - 24V, 10mm Wide, IP20
- LED COB Strip Light - 48V, 10mm Wide, IP20
- LED COB Strip Light Flowing Effect - 24V, 10mm Wide, IP20
LED SMD Strip Lights:
- LED 2835 Strip Light - 12V, 8mm Wide, IP20, 60 LEDs/m
- LED 2835 Strip Light - 12V, 8mm Wide, IP20, 120 LEDs/m
- LED 2835 Strip Light - 24V, 10mm Wide, IP20, 240 LEDs/m
- LED 5050 Strip Light RGB - 24V, 10mm Wide, IP44
- LED 5050 Strip Light Addressable RGB - 12V, 10mm Wide, IP20
- LED 5050 Strip Light Addressable RGBWW - 12V, 10mm Wide, IP20
- LED 5050 Strip Light Addressable RGBW - 12V, 10mm Wide, IP20
1M Kit
- 1 x 1M Aluminium Profile (Diffuser Included)
- 2 x End Caps
- 2 x Adjustable Mounting Brackets
- 2 x Mounting Clips
2M Kit
- 1 x 2M Aluminium Profile (Diffuser Included)
- 4 x End Caps
- 4 x Adjustable Mounting Brackets
- 4 x Mounting Clips
