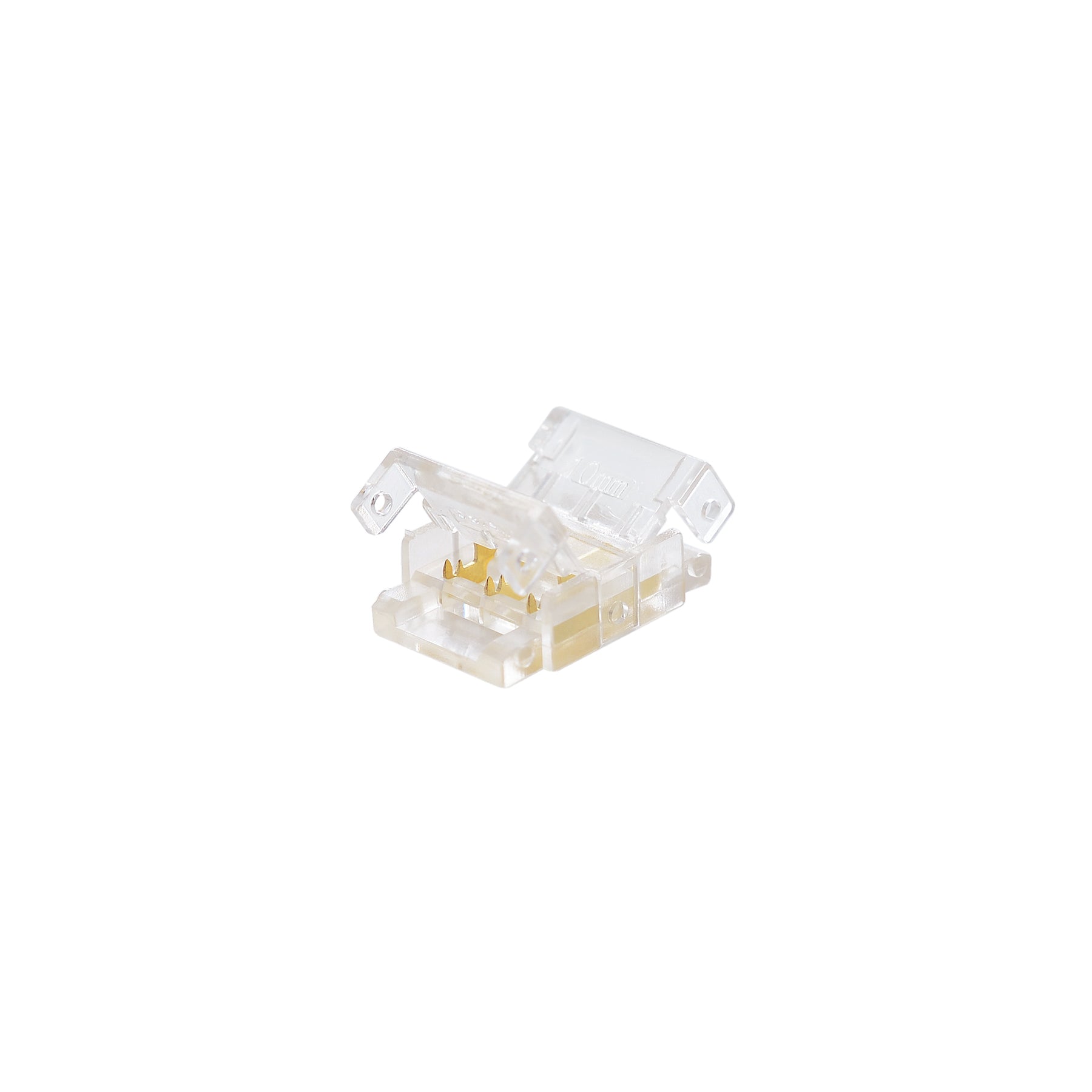

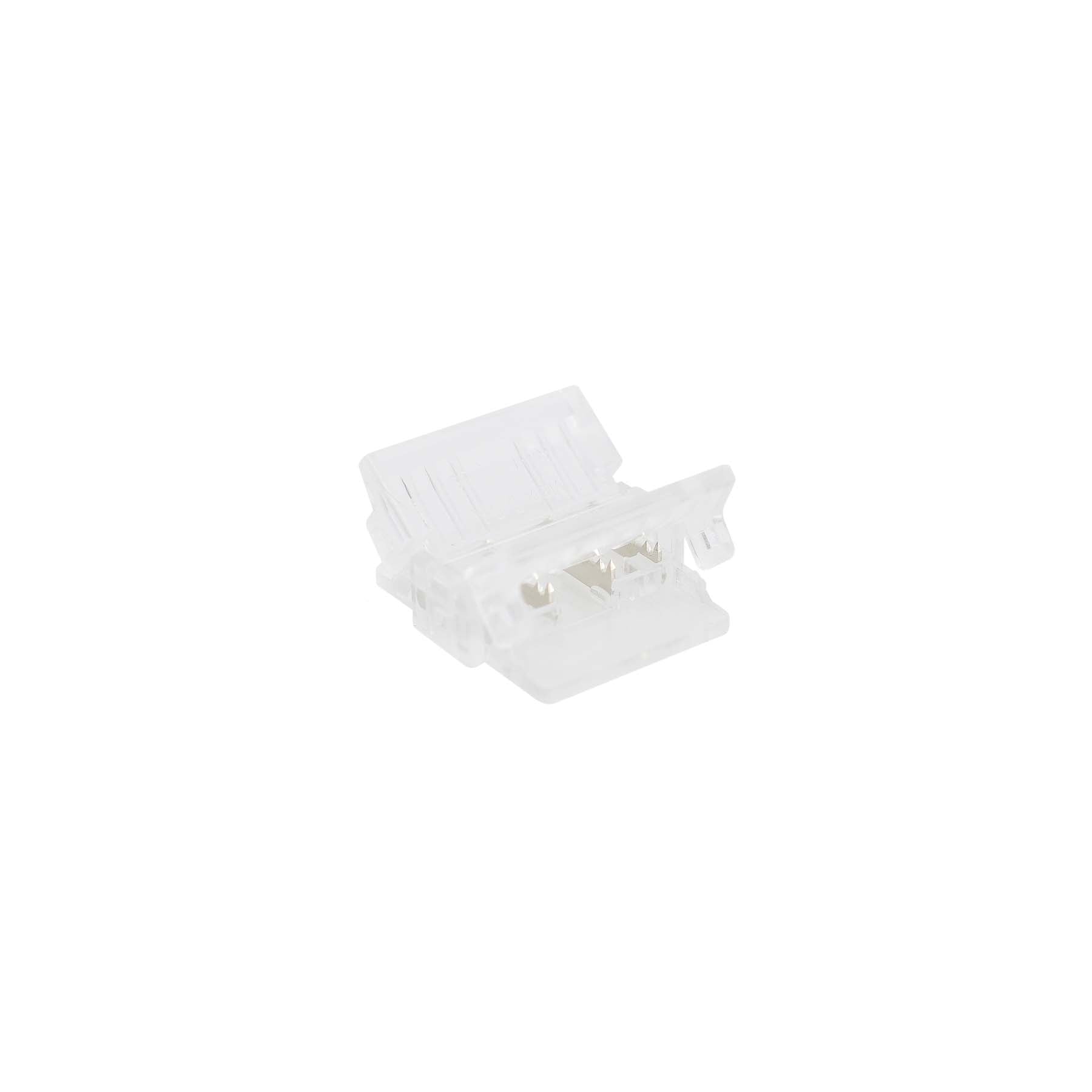

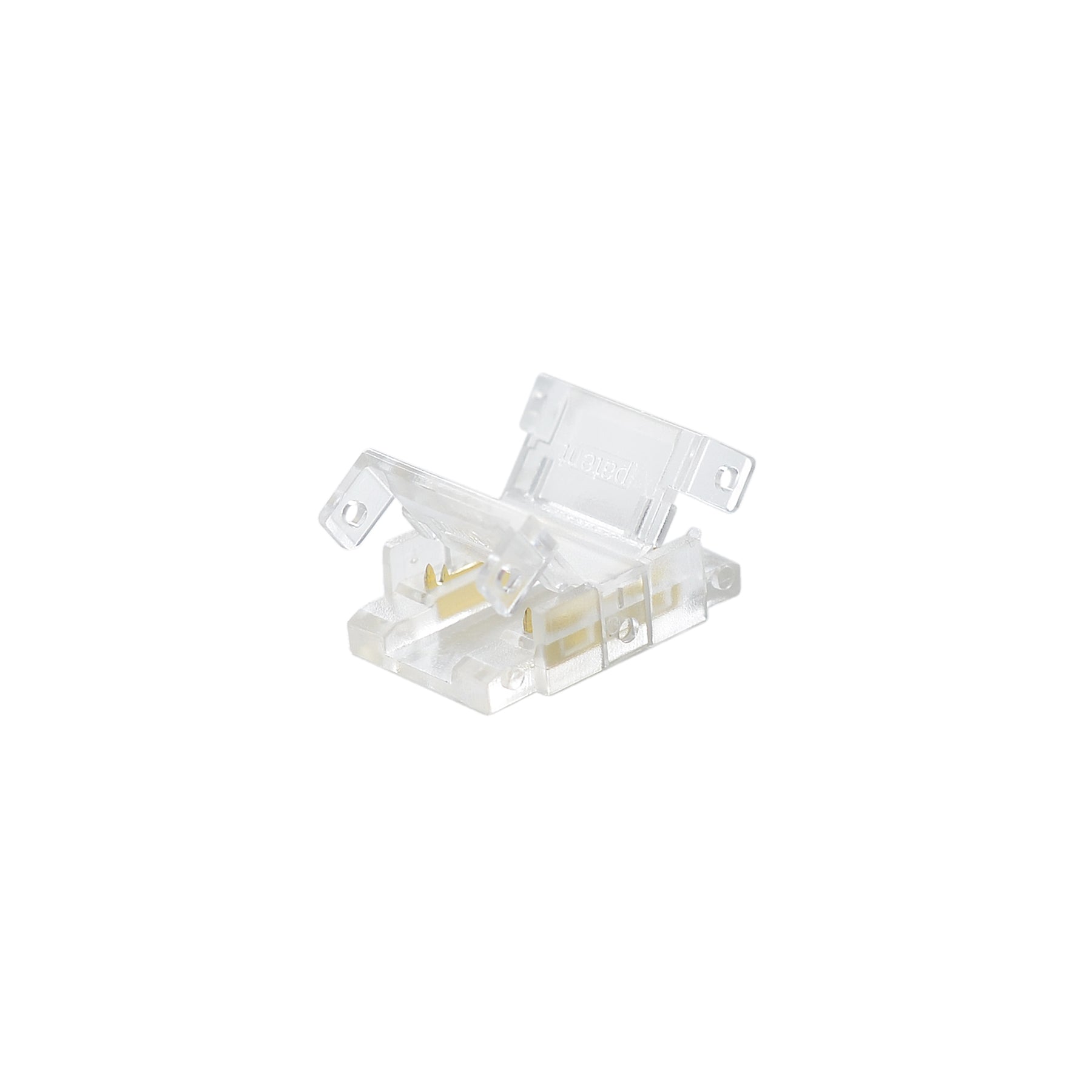

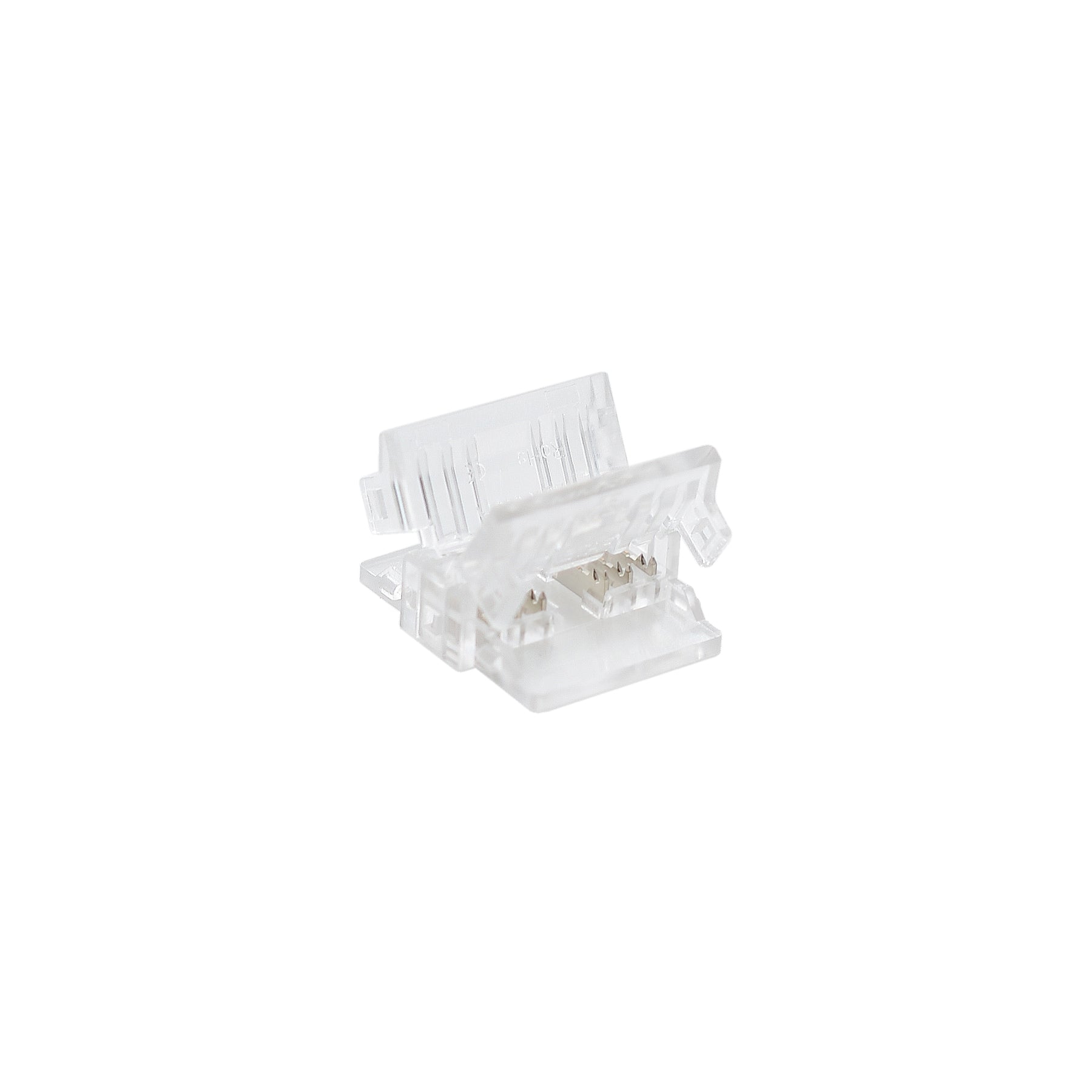

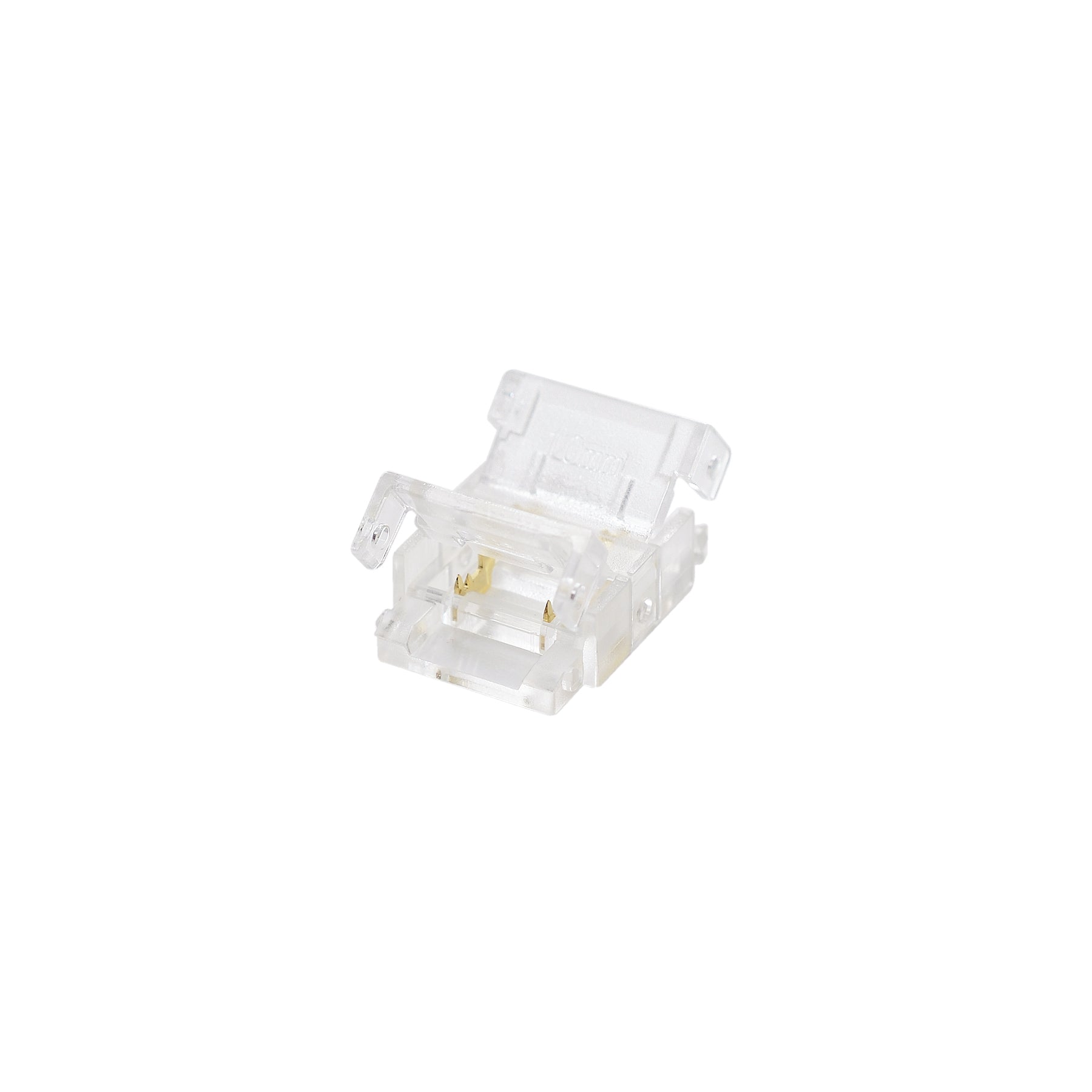

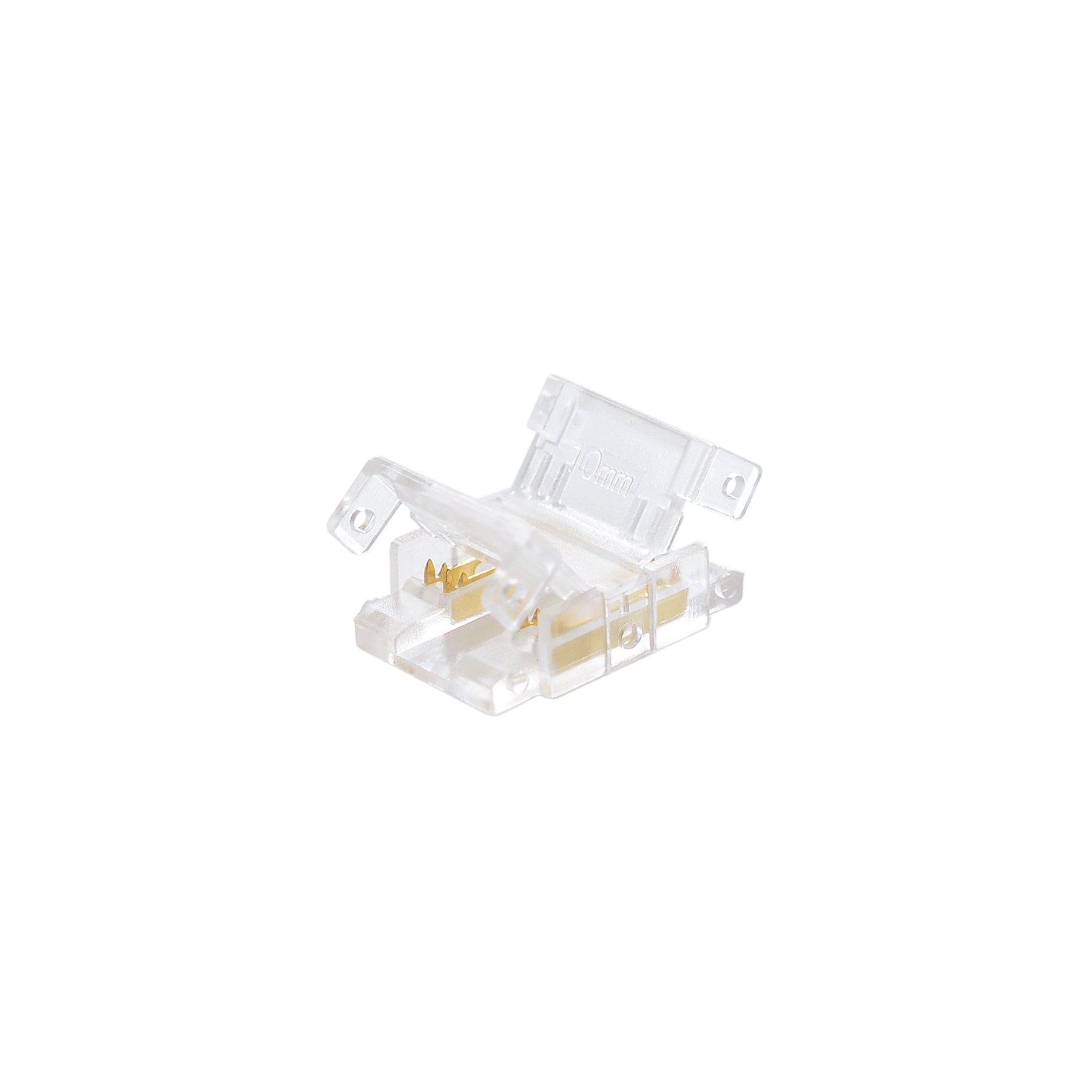

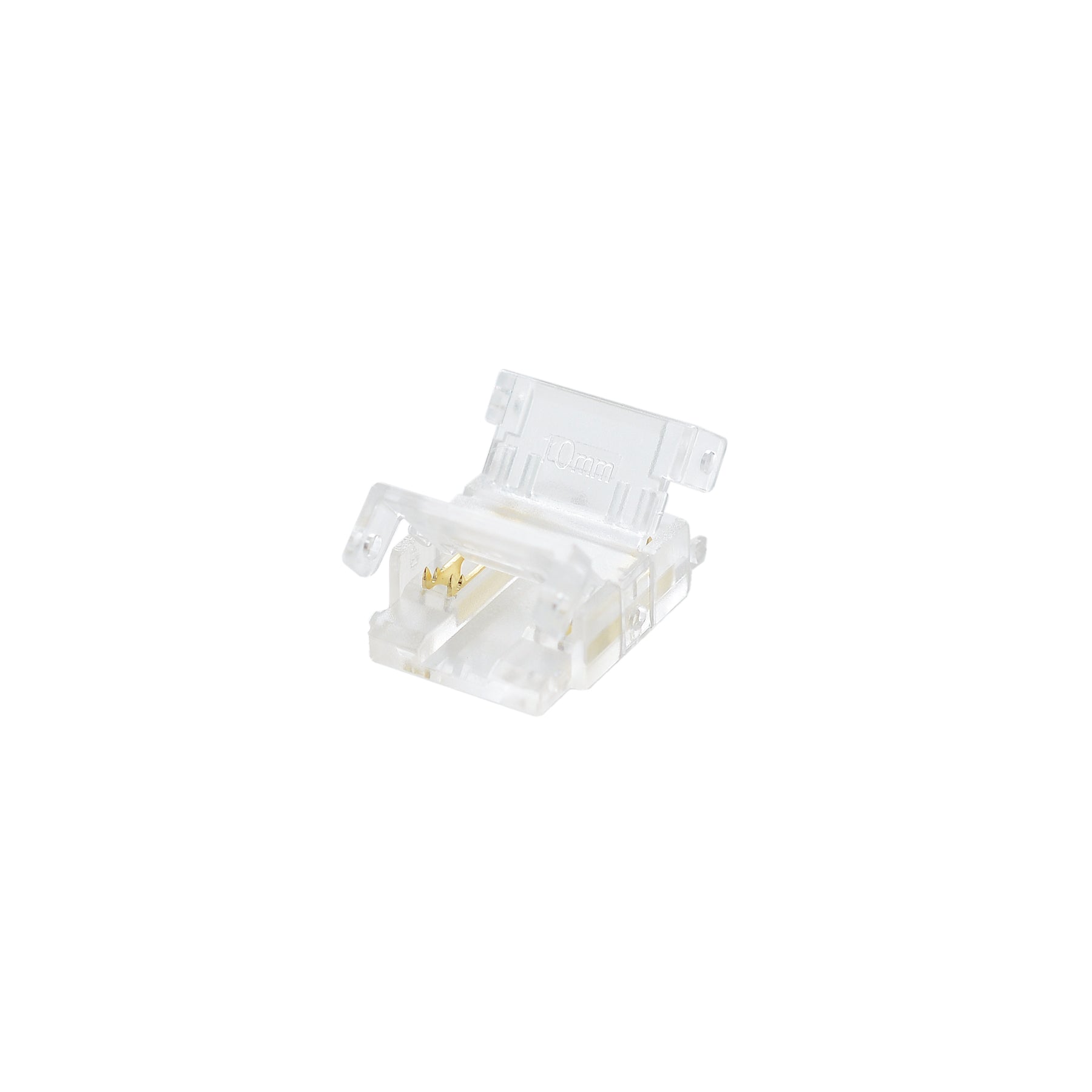

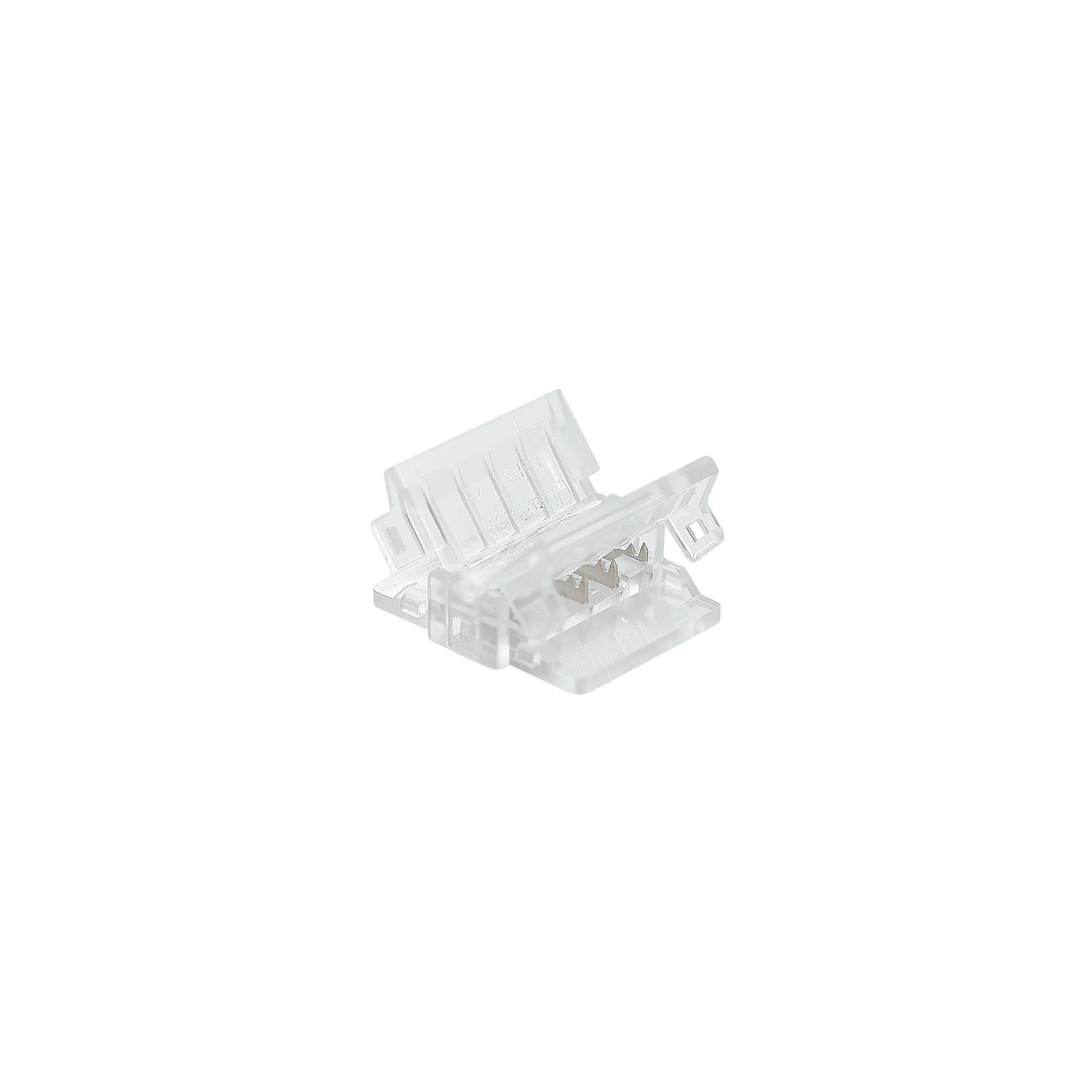

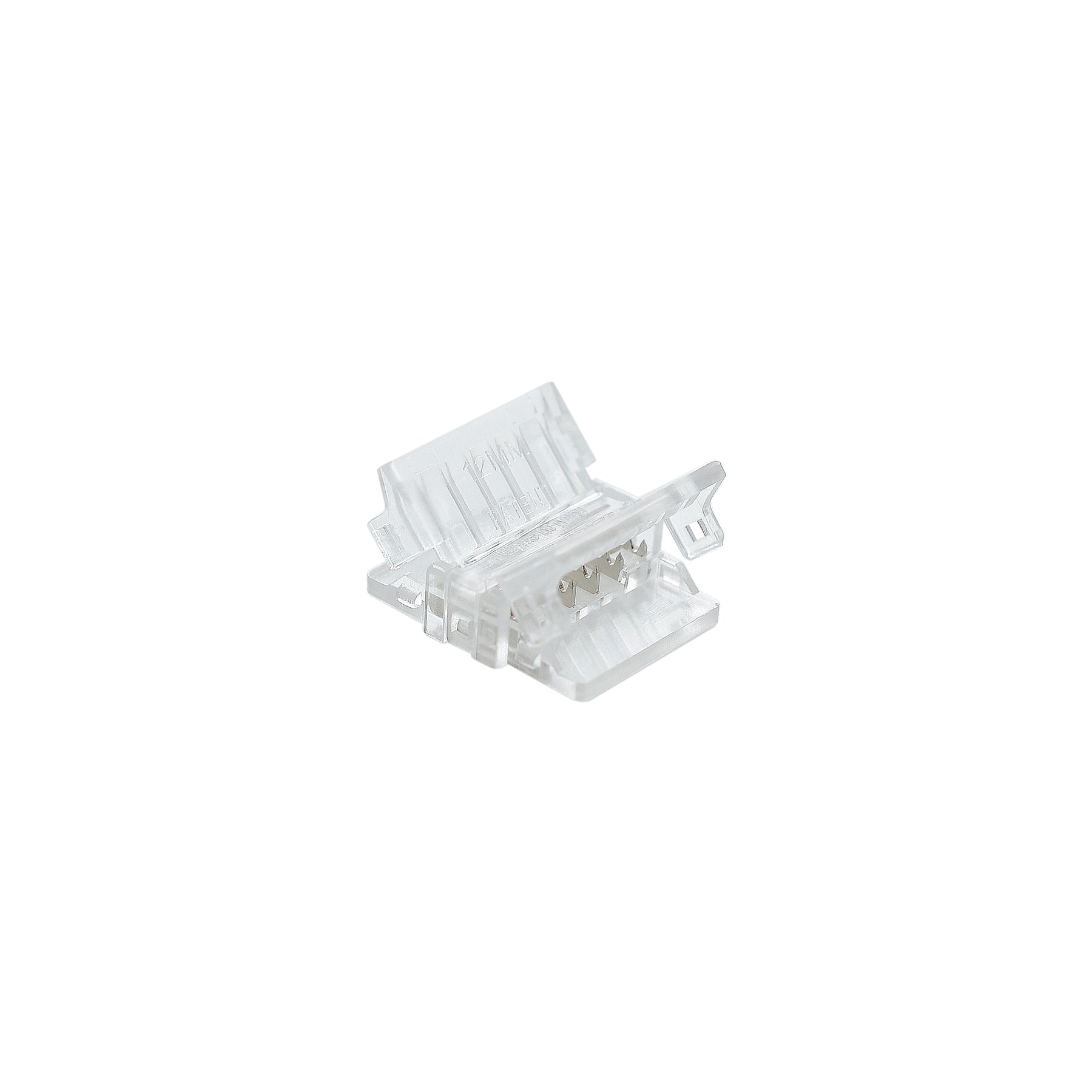

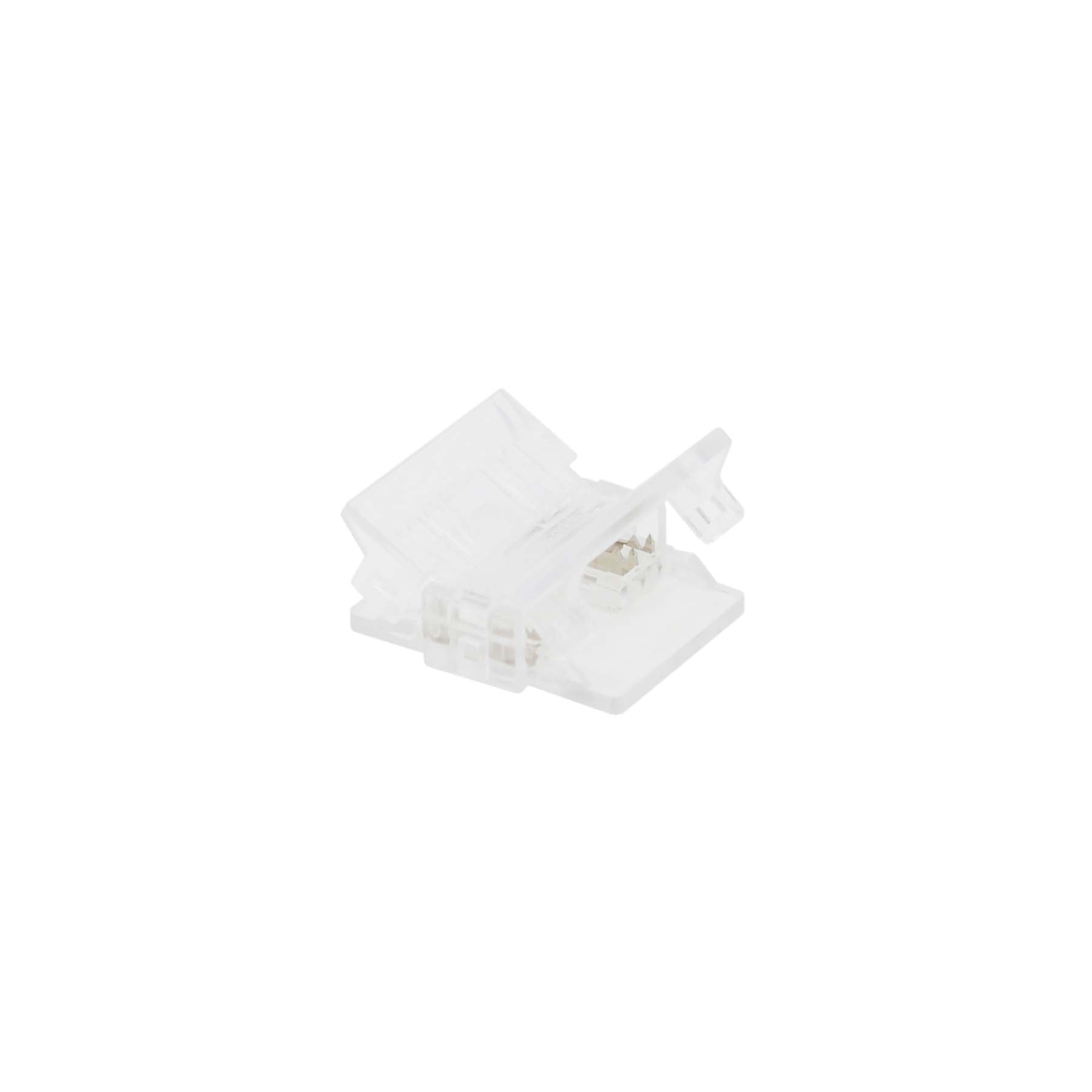

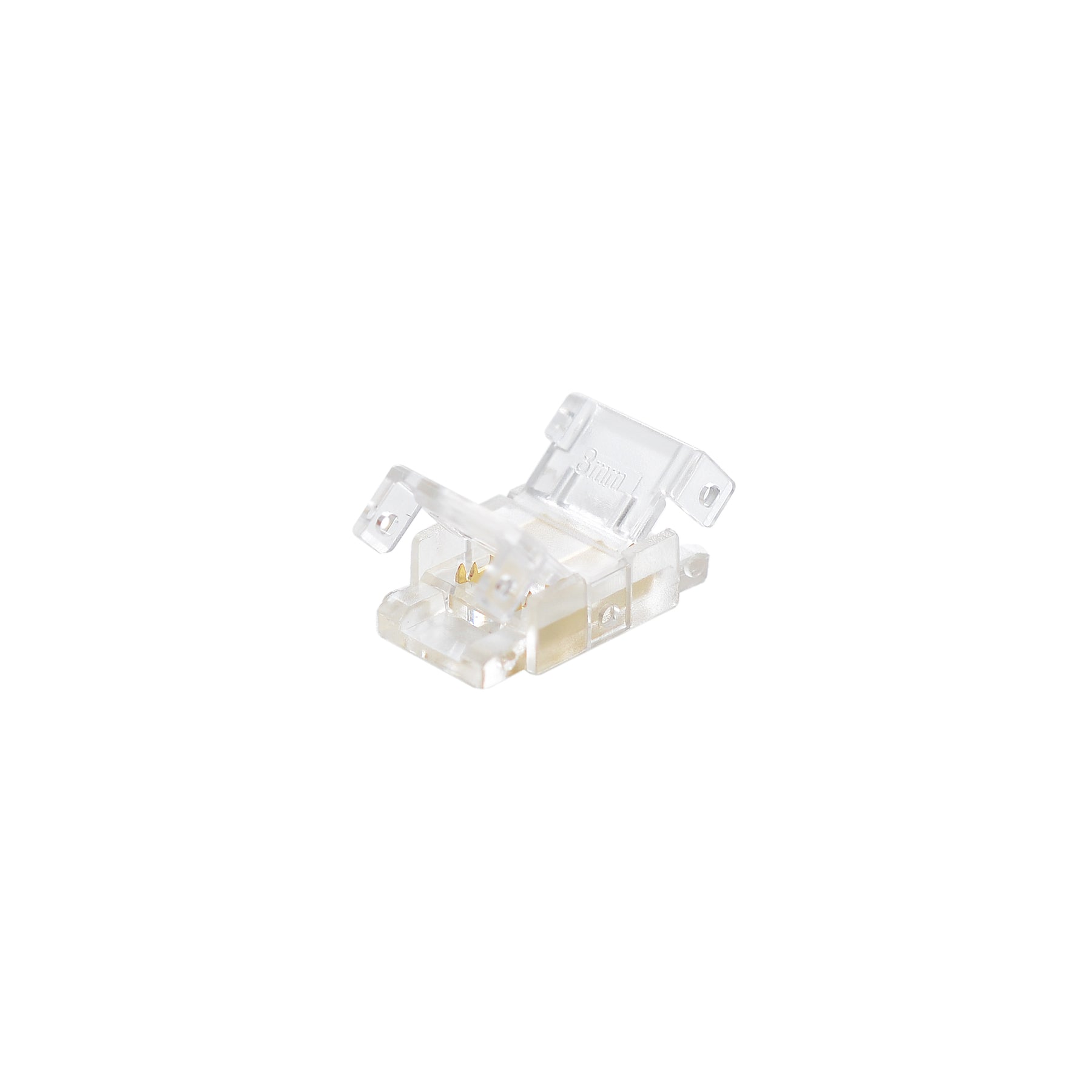

Quick Fit Solderless Strip to Strip Straight Connector For DC LED Strip Lights

A solderless strip-to-strip straight connector designed for DC low voltage LED strips.
It lets you join two LED strip lengths without soldering, saving time and effort on your LED installations.

How to Use:

1. Turn off the power: Always disconnect the power supply first.
2. Cut the LED strips: Cut both strips only on the marked cut line.
3. Open the connector: Lift the small plastic clip.
4. Insert the first strip: Slide the strip into one side of the connector. Make sure the copper pads sit under the metal pins.

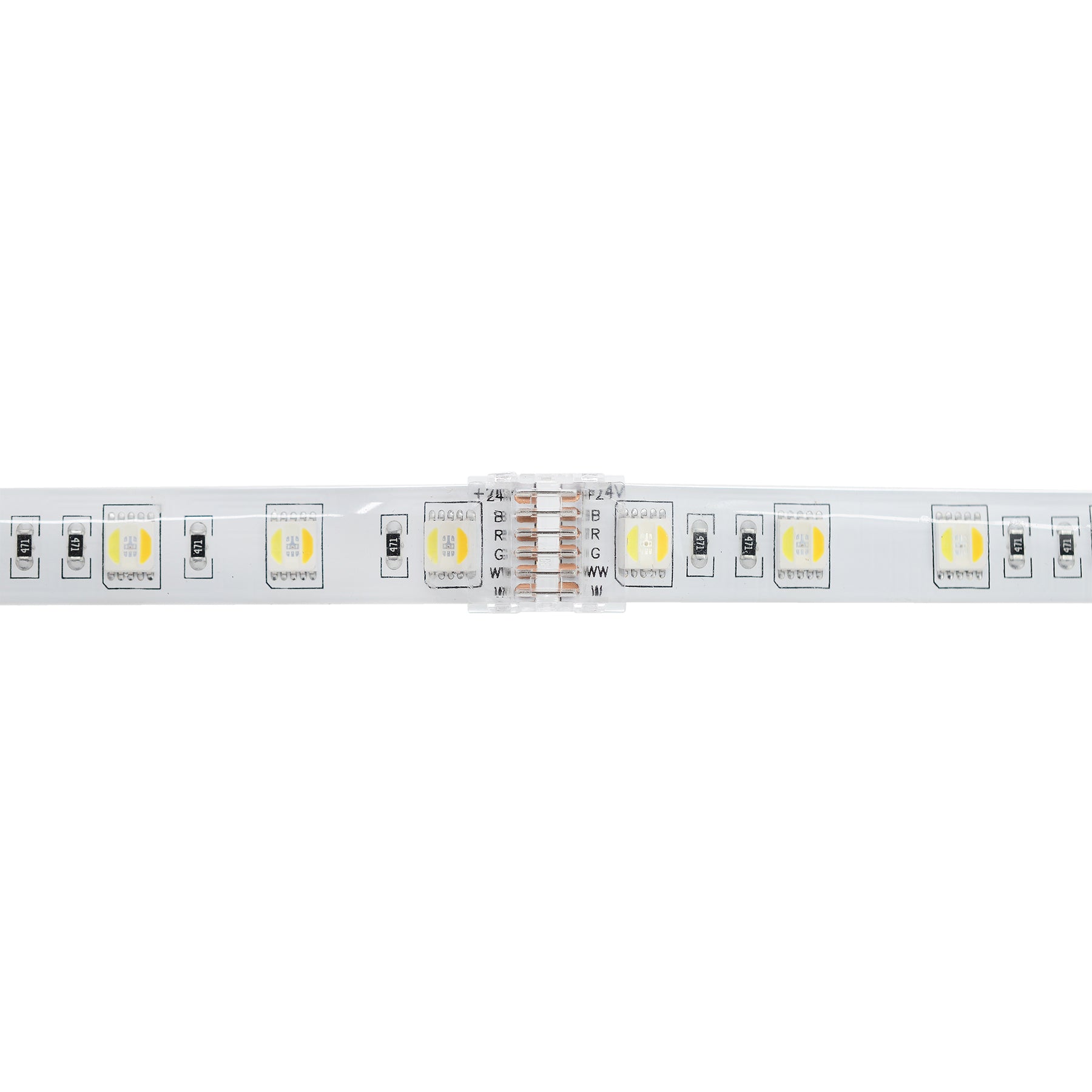

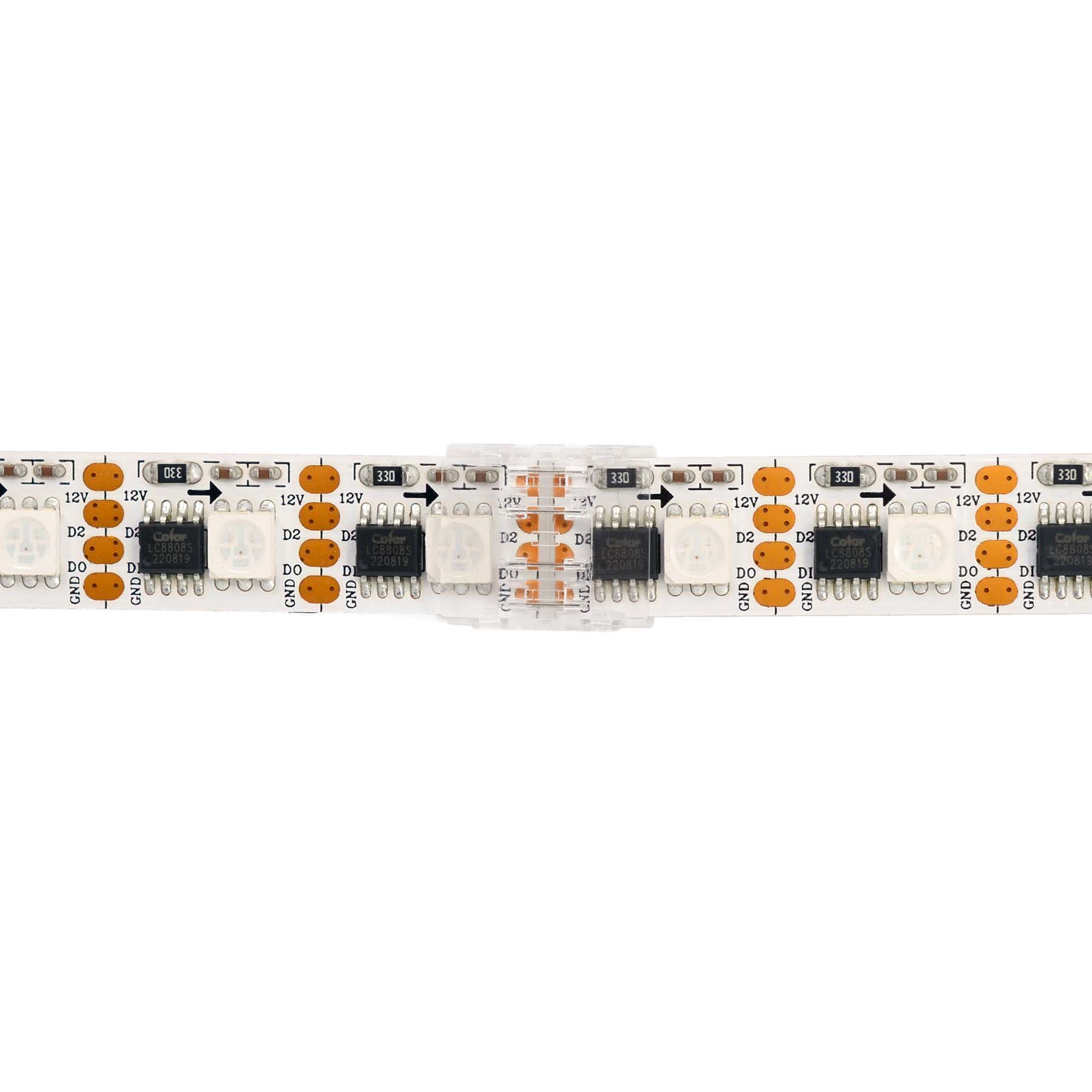

5. Insert the second strip: Insert the other strip from the opposite side. Align all pins correctly: the copper pads must match the metal pins. For multi-channel strips (RGB, RGBW, etc.), make sure each channel lines up.
6. Close the clip firmly: Press down until it clicks shut.
7. Test the connection: Turn the power back on and check both strips light up evenly.

Notes:

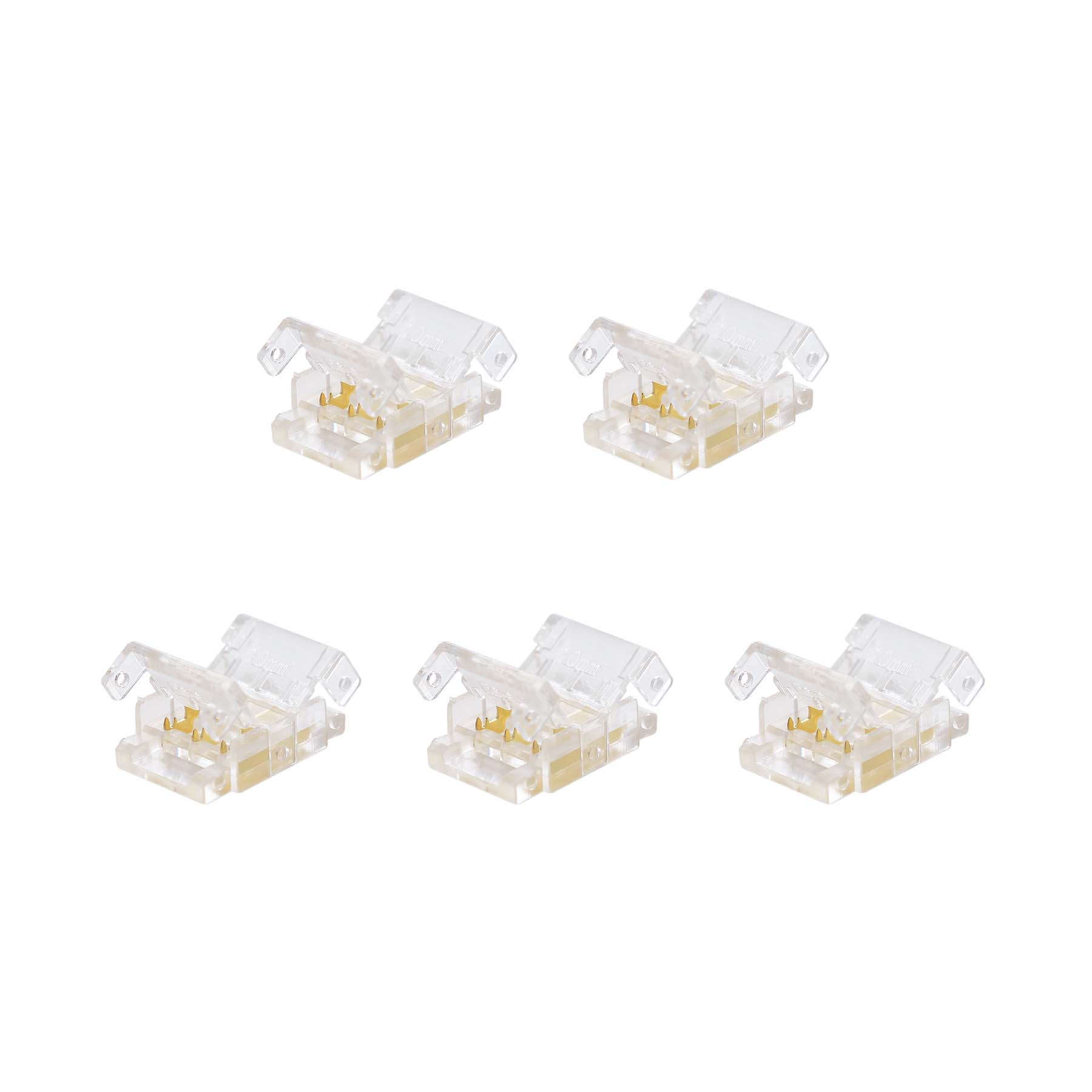

1. Supplied as a pack of 5 connectors.
2. Double check polarity (+ / –) before closing the connector to ensure correct operation.

3. To be used with DC low voltage LED strips only. Not suitable for mains or high voltage strip lights.
