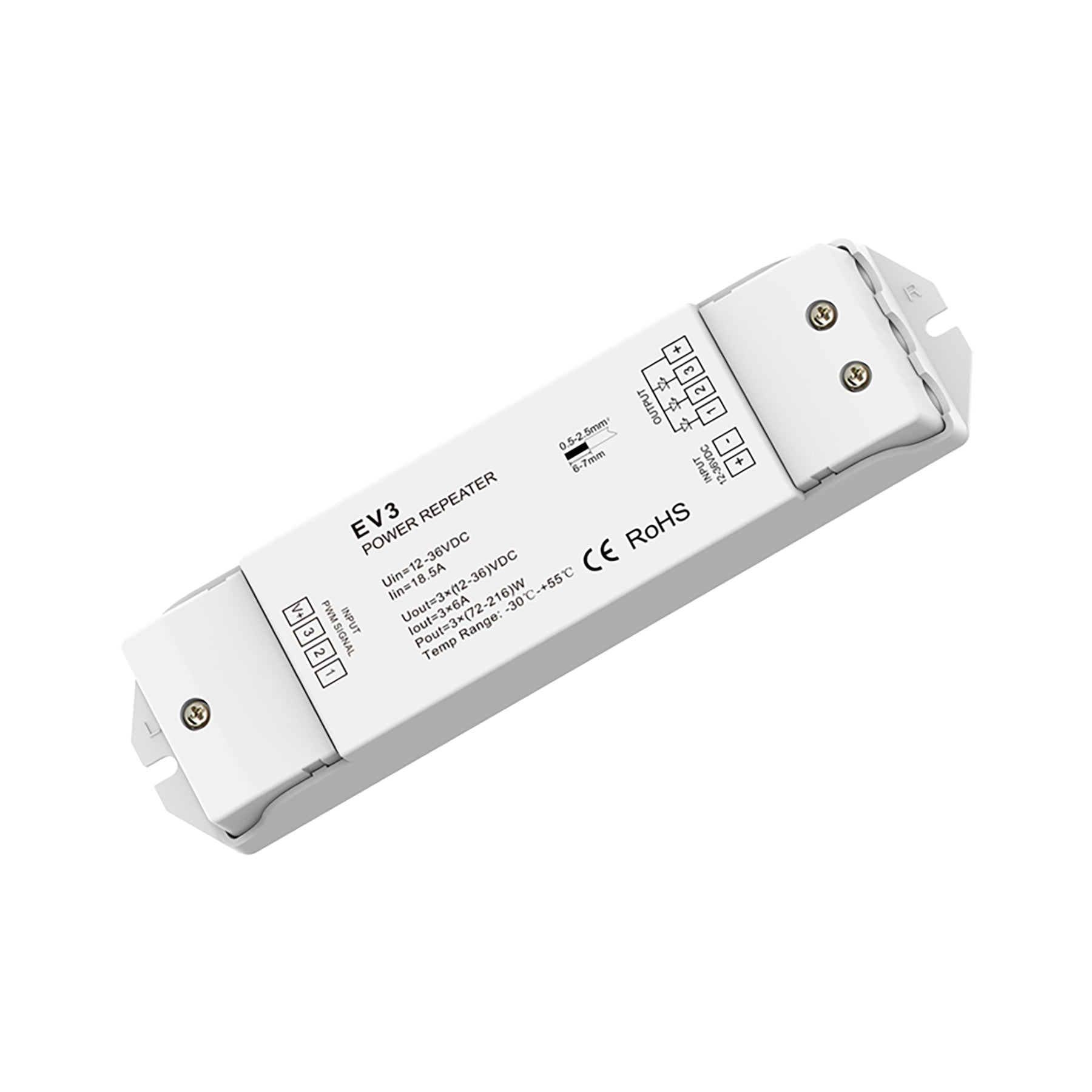

- 12-36V constant voltage power repeater/amplifier, three channels - 6A output per channel.
- For use with PWM signal controller, RF wireless LED controllers, 0/1-10V PWM dimming drivers and DMX decoders.
- Install in series or parallel to increase output.
- Compatible with single-colour and RGB LED strips or modules.
Fast Delivery28 Days ReturnsSecure Payment
- Input Voltage: DC12-36V
- Input Current: 18.5A
- Input Signal: PWM
- Output Voltage: 3xDC12-36V
- Output Current: 3CH, 6A/CH
- Output Power: 3x(72-216)W
- Output Type: Constant Voltage
- Working Temperature: -30°C to +55°C
- Case Temperature: Max. +85°C
- IP Rating: IP20
- Dimension: 175(L)x45(W)x27(H)mm
- EMC Standard: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
- Safety Standard: EN 62368-1:2020+A11:2020
- Protection: Reverse Polarity, Overheat, Short Circuit
- Warranty: 5 Years
