- Comply with the DMX512 standard protocols.
- Digital numeric display: set DMX to decode and start the address using the buttons.
- RDM function allows communication between the DMX master and decoder. For example, the DMX decoder address can be set by the DMX master console.
- 16bit (65536 levels)/8bit (256 levels) grey level.
- PWM frequency 250/500/1000/2000/4000/8000/16000Hz.
- Logarithmic or linear dimming curve adjustable.
- Over-heat/over-load/short circuit protection, and automatic recovery.
- RJ-45 DMX signal ports.
Fast Delivery28 Days ReturnsSecure Payment
- Input Voltage: DC12-48V
- Input Current: 20.5A
- Output Voltage: 5xDC12-48V
- Output Current: 5CH, 4A/CH
- Output Power: 5x(48-192)W
- Output Type: Constant Voltage
- IP Rating: IP20
- Working Temperature: -30°C to +55°C
- Case Temperature: Max. +75°C

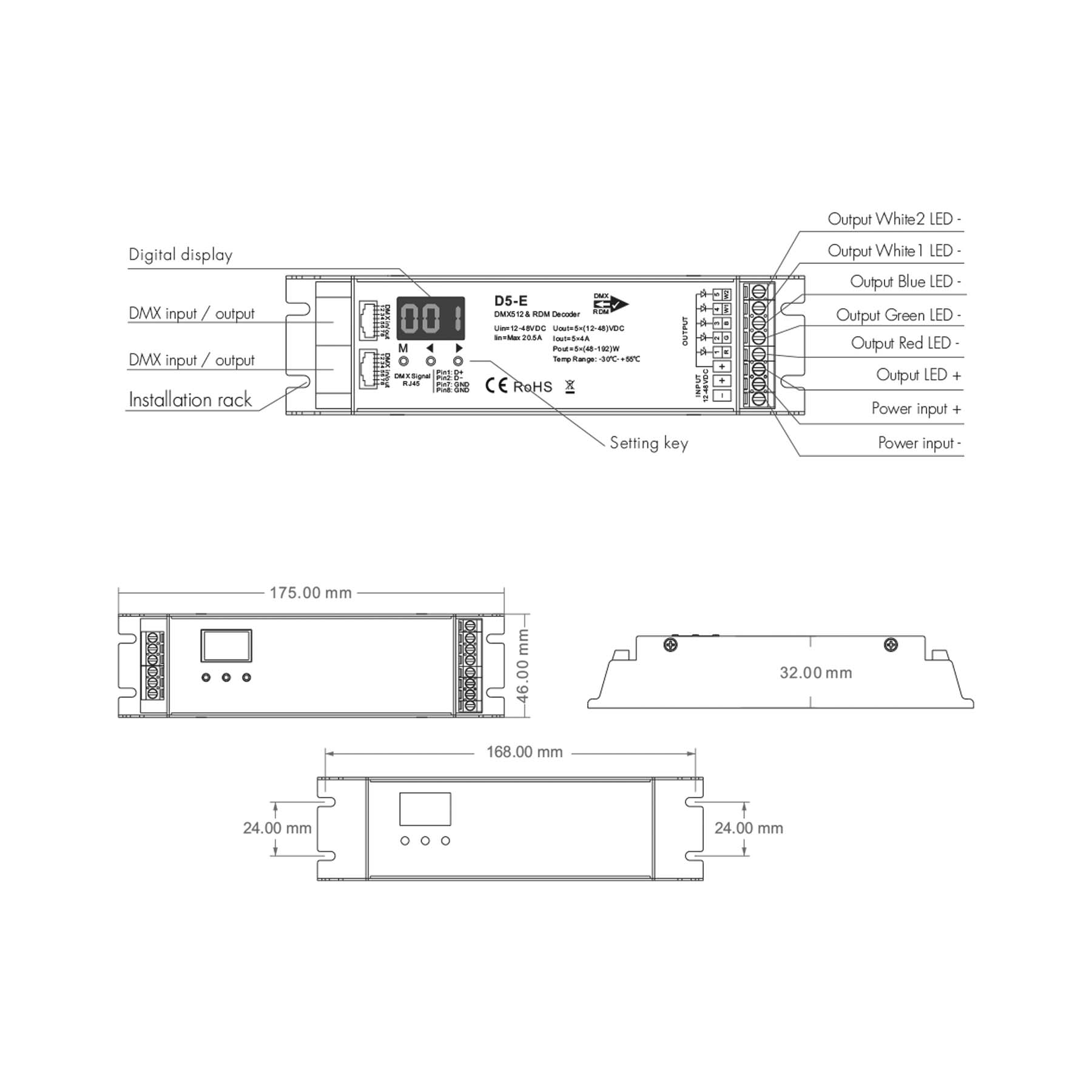

- Dimension: 175(L)x46(W)x32(H)mm
- EMC Standard: ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4
- Safety Standard: EN 62368-1:2020+A11:2020
- Warranty: 5 Years
